Fuente de alimentación |
220V±10%, monofásico 10A, 2,5KVA |
|
Dimensiones del contorno |
870 (largo)×470 (ancho)×440 mm (alto) |
|
Peso |
Aproximadamente 100 kg |
|
Entorno operativo |
Temperatura: 20-25℃; Humedad: menos del 70% |
|
Pureza del argón |
≥99,999% |

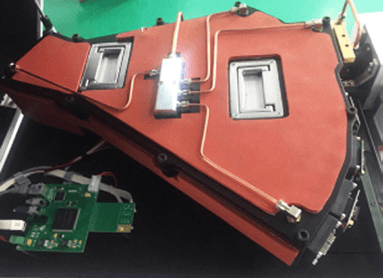

Optical Dystem: High luminous holographic grating, focal length: 500mm ,2700 grooves/mm.

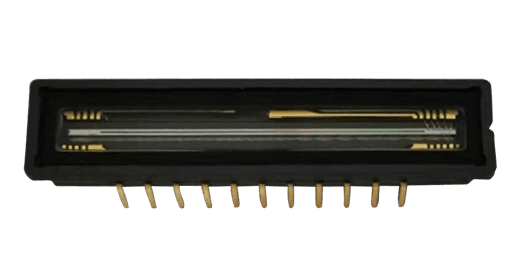

CCD Detector: 3648 pixels per chip.Single pixel size is only 8μm.

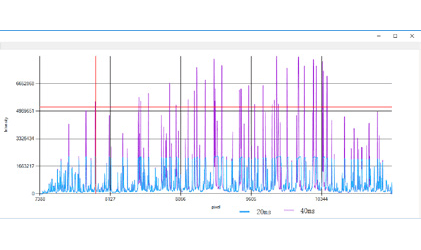

New Monitoring System: Brand new system monitoring of instrument status that displays the instrument status and work progress at bottom of the software.

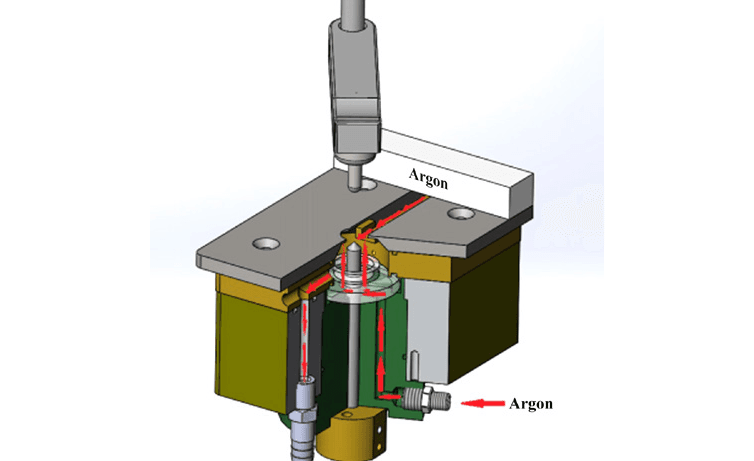

Spark Stand: Max. weight of sample: 50kg. Newly designed coaxial spark stand with optimized internal gas circuit to greatly reduce argon consumption. Self-purging function that keeps the cavity clean.
Spark Source: Max. discharge frequency 1000Hz.
Argon Gas Consumption: Programmable argon-flushed system with short argon-flushing time and low consumption. Ultra-low standby flour rate: 60ml/min, a bottle of argon can be used for 70 days for 24 hours standby.
