FreeScan UE Pro2 |
||
|
Modos de escaneo |
Modo de escaneo de alta velocidad |
50 líneas láser |
|
Modo de escaneo preciso |
7 líneas láser paralelas |
|
|
Modo de escaneo de agujeros profundos |
1 línea láser |
|
|
Modo fotogramétrico |
Fotogrametría binocular integrada |
|
|
Precisión del escaneo |
0,02 mm |
|
|
Precisión volumétrica |
0,015 mm + 0,03 mm/m ( con fotogrametría integrada 0,02 mm + 0,015 mm /m ) |
|
|
Distancia entre puntos |
0,01 mm - 10 mm (Ajustable) |
|
|
Velocidad de escaneo |
3,46 0,000 puntos/s |
|
|
Campo de visión máximo |
600 mm × 550 mm |
|
|
Distancia de trabajo |
300 mm ( modo de escaneo de alta velocidad / agujero profundo ); 200 mm ( modo de escaneo preciso ) |
|
|
Profundidad de escaneo |
550 mm |
|
|
Clase láser |
Clase II (seguro para la vista) |
|
|
Dimensiones |
306 mm × 119 mm × 101 mm |
|
|
Peso |
9 5 0 g |
|
|
Entrada de alimentación |
24 V , 3,75 A |
|
|
Rango de temperatura de funcionamiento / Rango de humedad |
-20 ° C ~ 40 ° C , 10 % humedad relativa ~ 90 % humedad relativa |
|
|
Método de conexión |
Las conexiones inalámbricas y por cable se pueden alternar libremente (la velocidad de escaneo es la misma en ambos casos). |
|
|
Método de transmisión por cable |
USB 3.0 |
|
|
Método de transmisión inalámbrica |
Wi-Fi 6/802.11a/b/g/n/ac |
|
|
Batería externa estándar |
La batería externa debe cumplir con el protocolo PD (interfaz USB Tipo-C) y tener una potencia de salida de 100 W. |
|
|
Configuración de computadora recomendada |
Sistema: Windows 10 o superior (Edición Profesional), 64 bits; Gráficos: Serie NVIDIA, RTX 4060 o superior (se recomienda RTX 4090 o superior); Memoria de vídeo: ≥ 8 GB ( se recomiendan ≥ 16 GB); Procesador: Intel i7-13700H o superior; RAM: ≥ 64 GB |
|
Suitable for industrial measurement in various scenarios
50 intersecting blue laser beams combined with real-time grid scanning for fast scanning speed and high efficiency
Suitable for industrial structural damage measurement and large component development and repair
Combined with an embedded computing module, it enables wireless scanning and measurement of large workpieces
Lightweight, ensuring long-term measurement without burden
Suitable for measuring sheet metal parts (special-shaped surfaces) and large castings
Operates in a temperature range of -20°C to 40°C, ensuring a wide range of applications
Aplicaciones
Automotive Industry

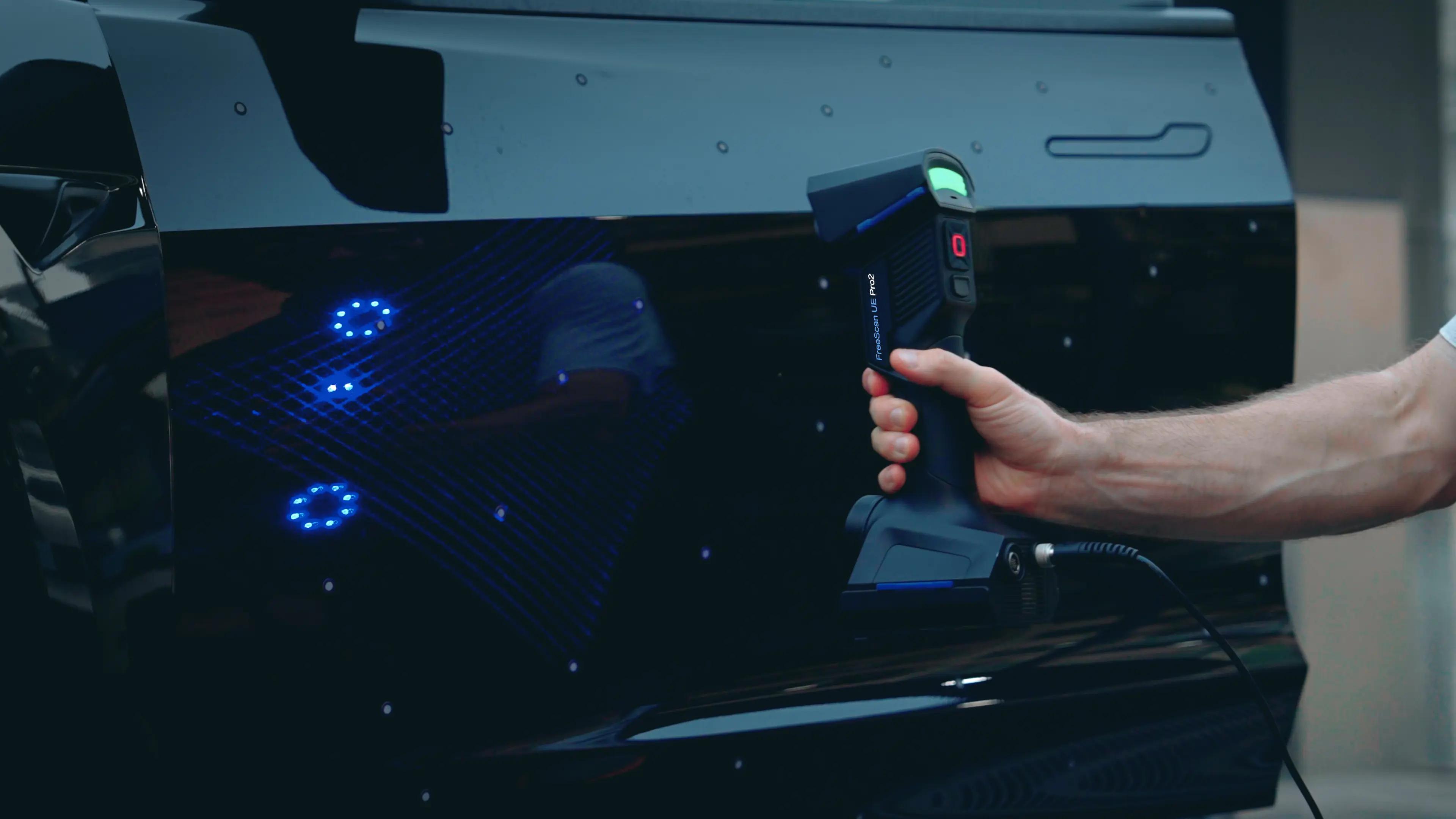

3D dimensional inspection of auto parts, 3D inspection of automotive molds
Civil aviation
Full-size inspection of engine blades, component quality control, assembly and integration
Construction Machinery

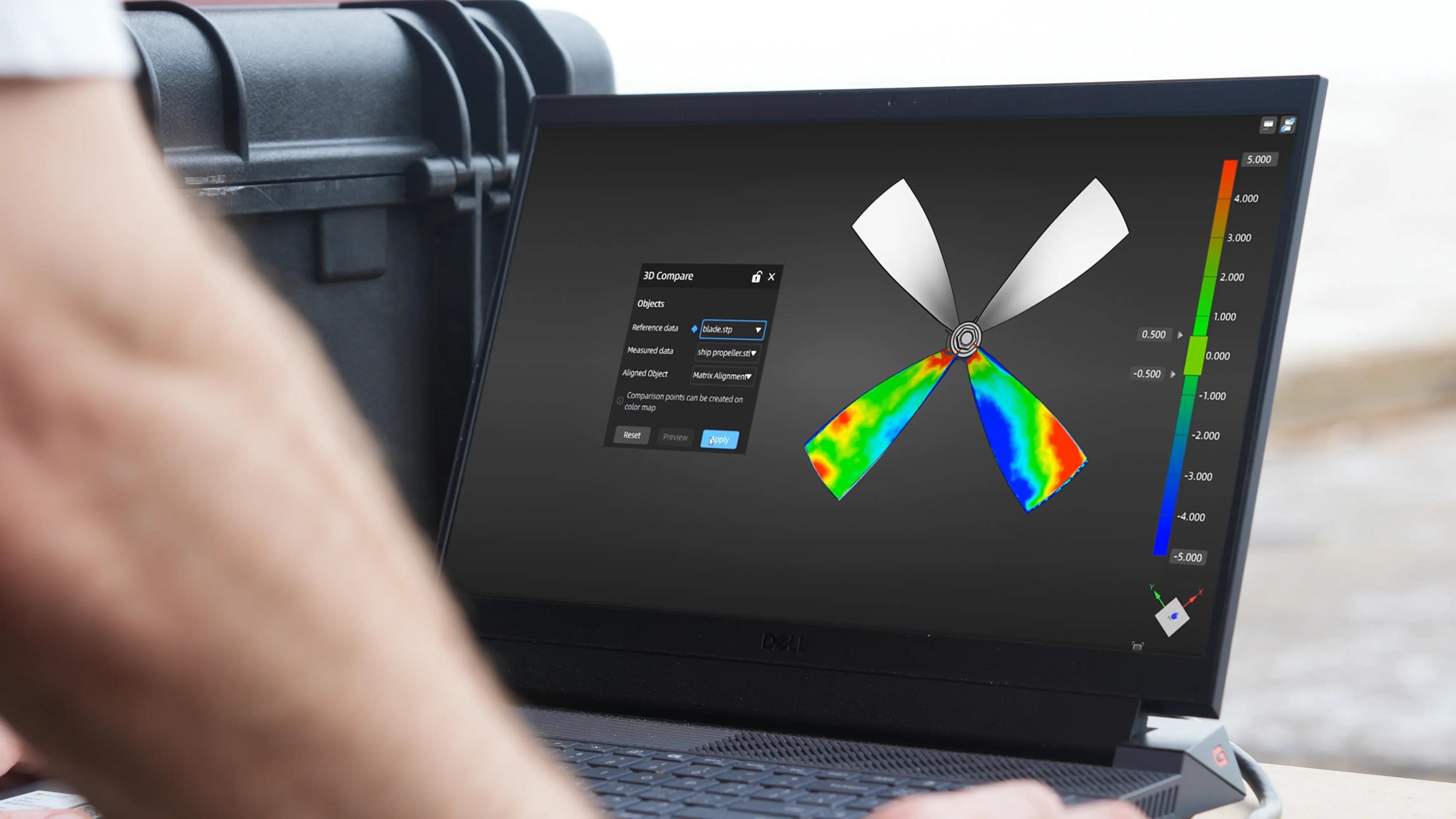

Deformation inspection of mining truck axle、Deformation inspection of reducer housing、New product development of large-scale components
Energy and Heavy Industry

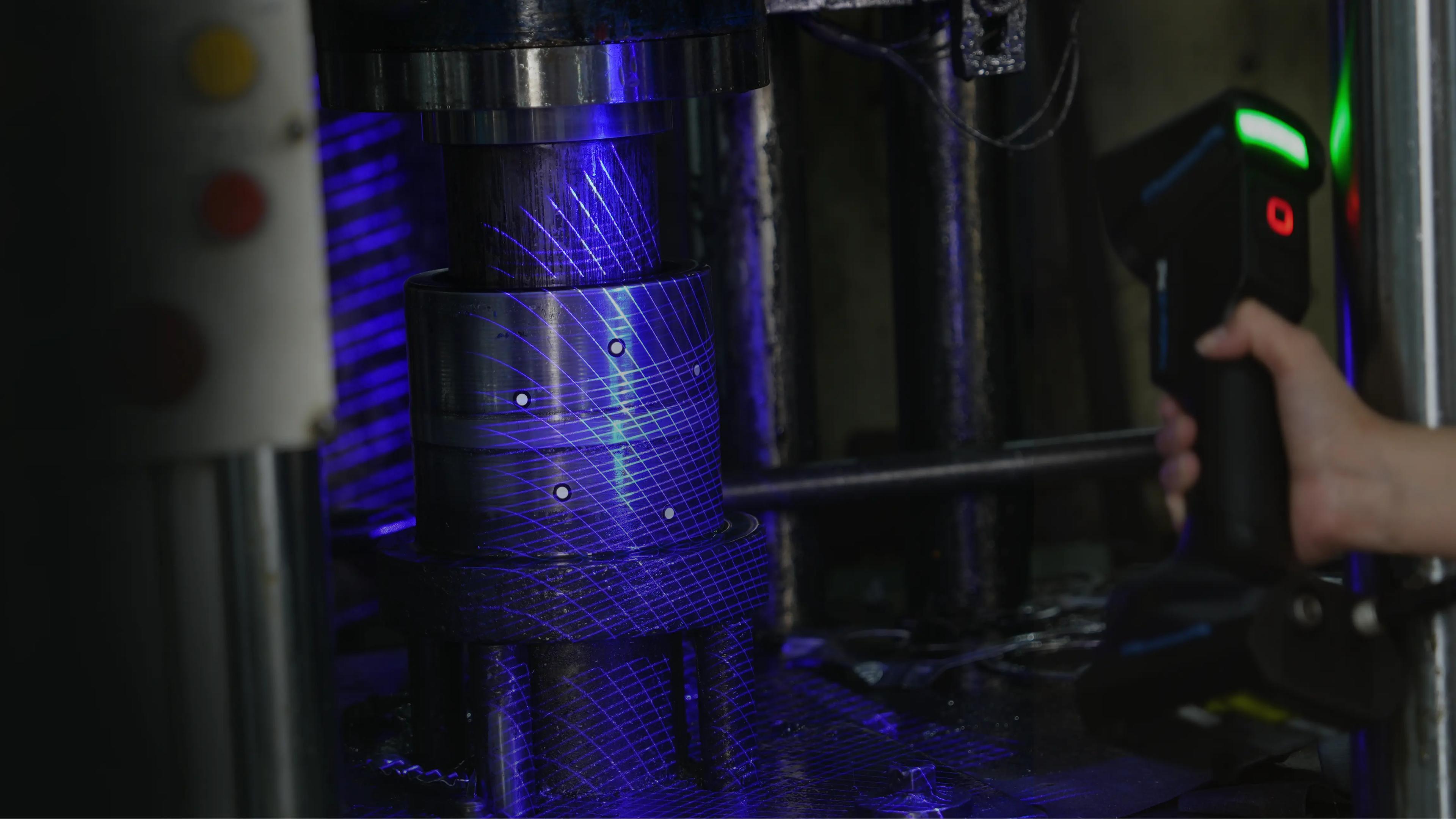

Inspection of production molds、Finished product inspection of wind power main shafts、3D inspection of wind power hubs Application Cases
Casos de aplicación
Aspectos destacados
Lightweight design, wireless scanning.

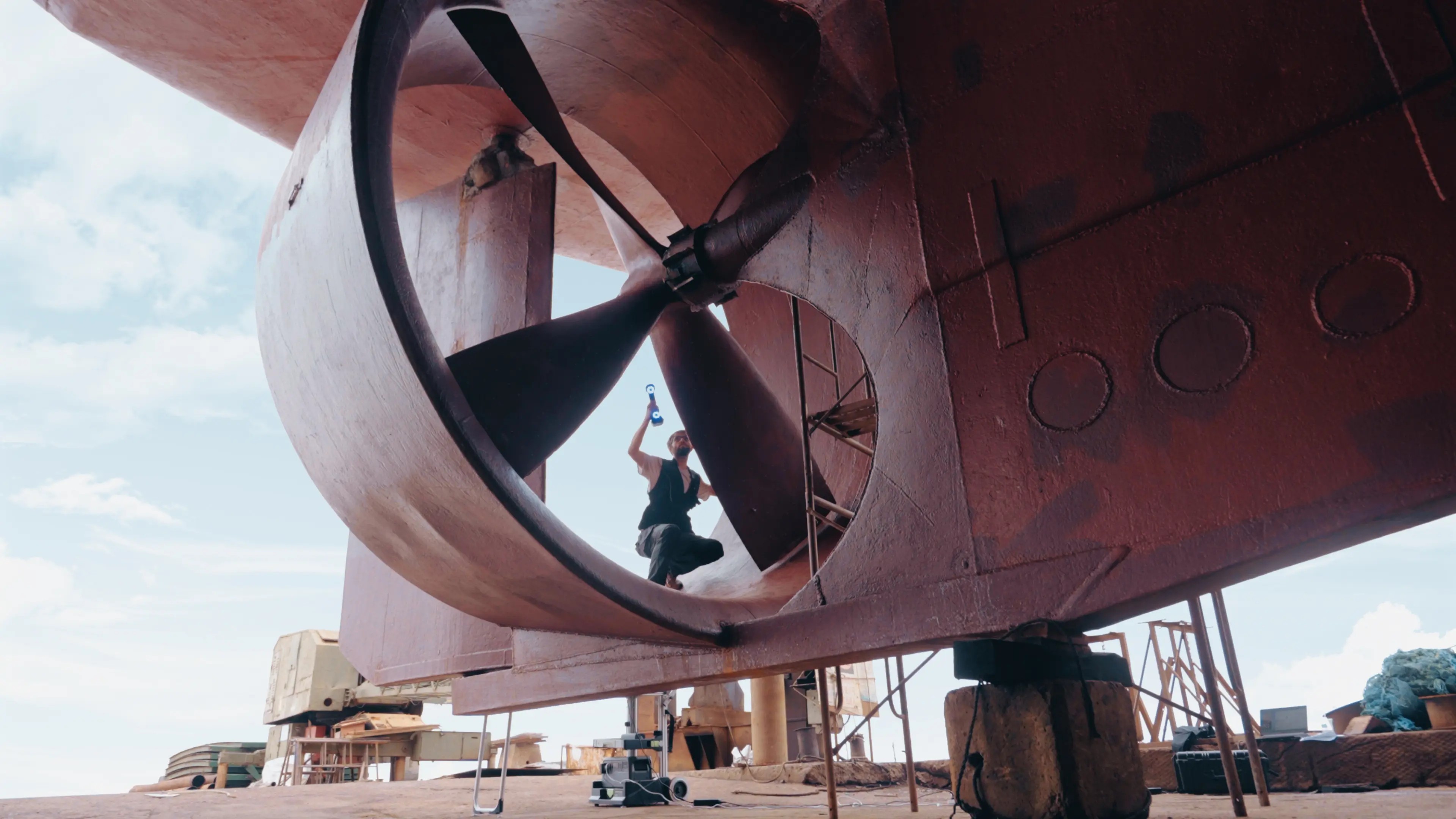

The device features a lightweight 950g design and innovative embedded edge computing modules for wireless transmission. When used with a power bank, wireless scanning is possible. (The power bank must comply with the PD protocol (USB Type-C interface) and have an output of 100W.)
Accuracy-focused, meeting requirements.

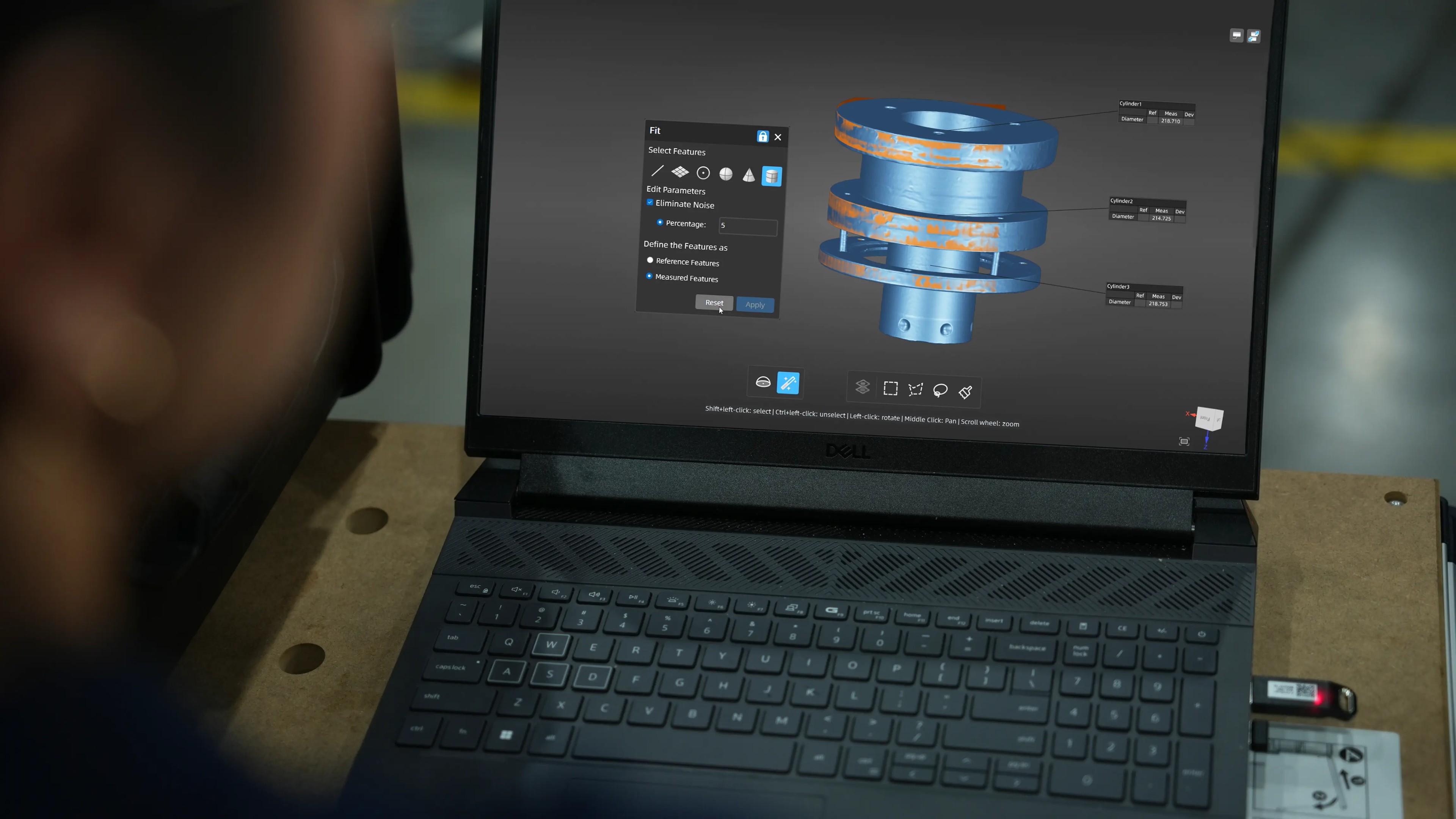

With an accuracy of 0.02mm and stable repeatability, it meets the 3D measurement requirements of the manufacturing industry.
Photogrammetry requires no coded targets.
Photogrammetry eliminates the need for coded points, ensuring accurate data capture of large objects. (Combined with photogrammetry, volumetric accuracy reaches up to 0.02mm + 0.015mm/m.)
High-efficiency scanning, prioritizing efficiency.

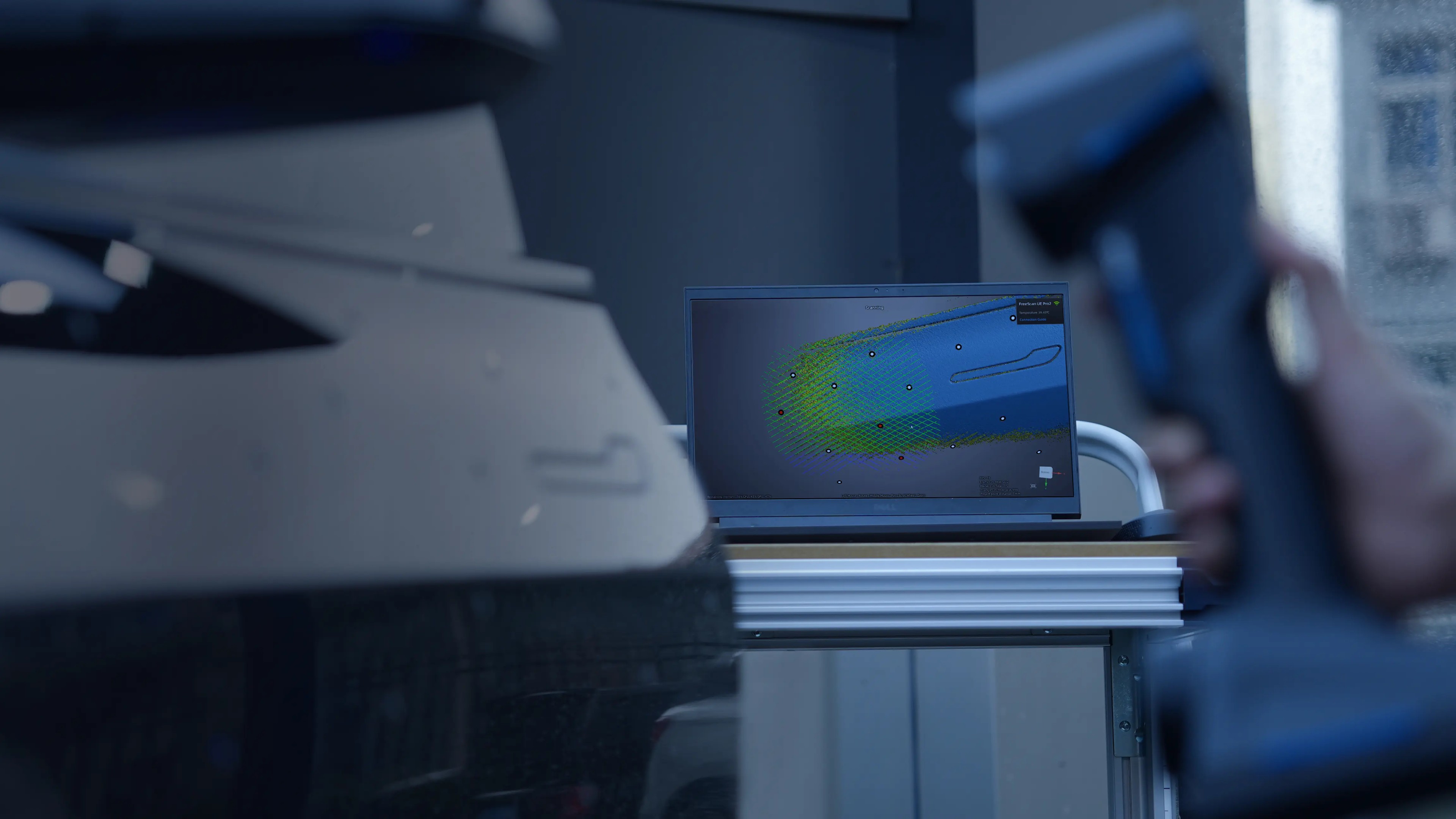

A total of 58 laser beams significantly improve efficiency and enable rapid scanning at speeds up to 3,460,000 points/s.

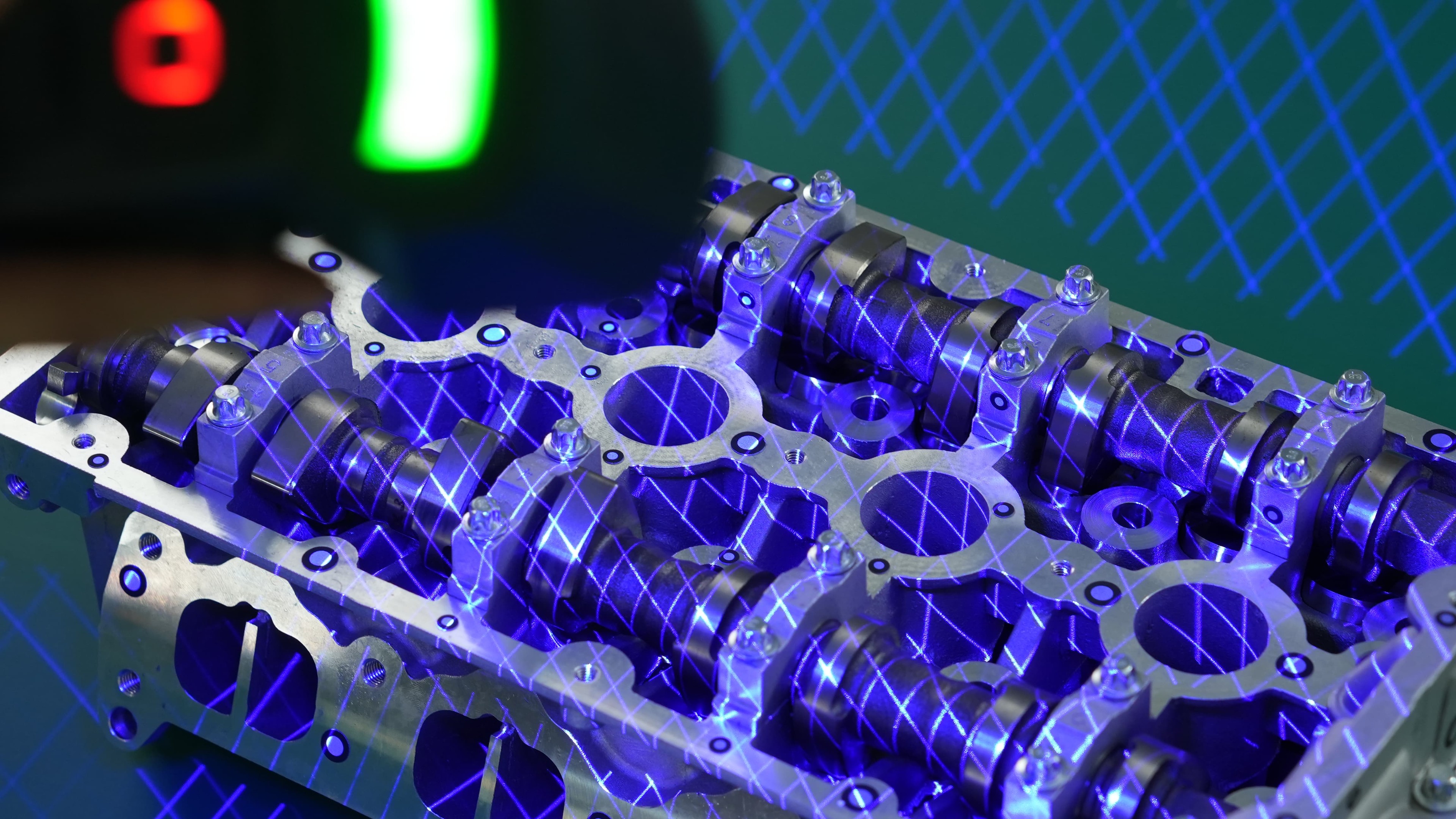

Real-time meshing for high fidelity.
Improves overall efficiency.
Four measurement modes, one machine for multiple uses.

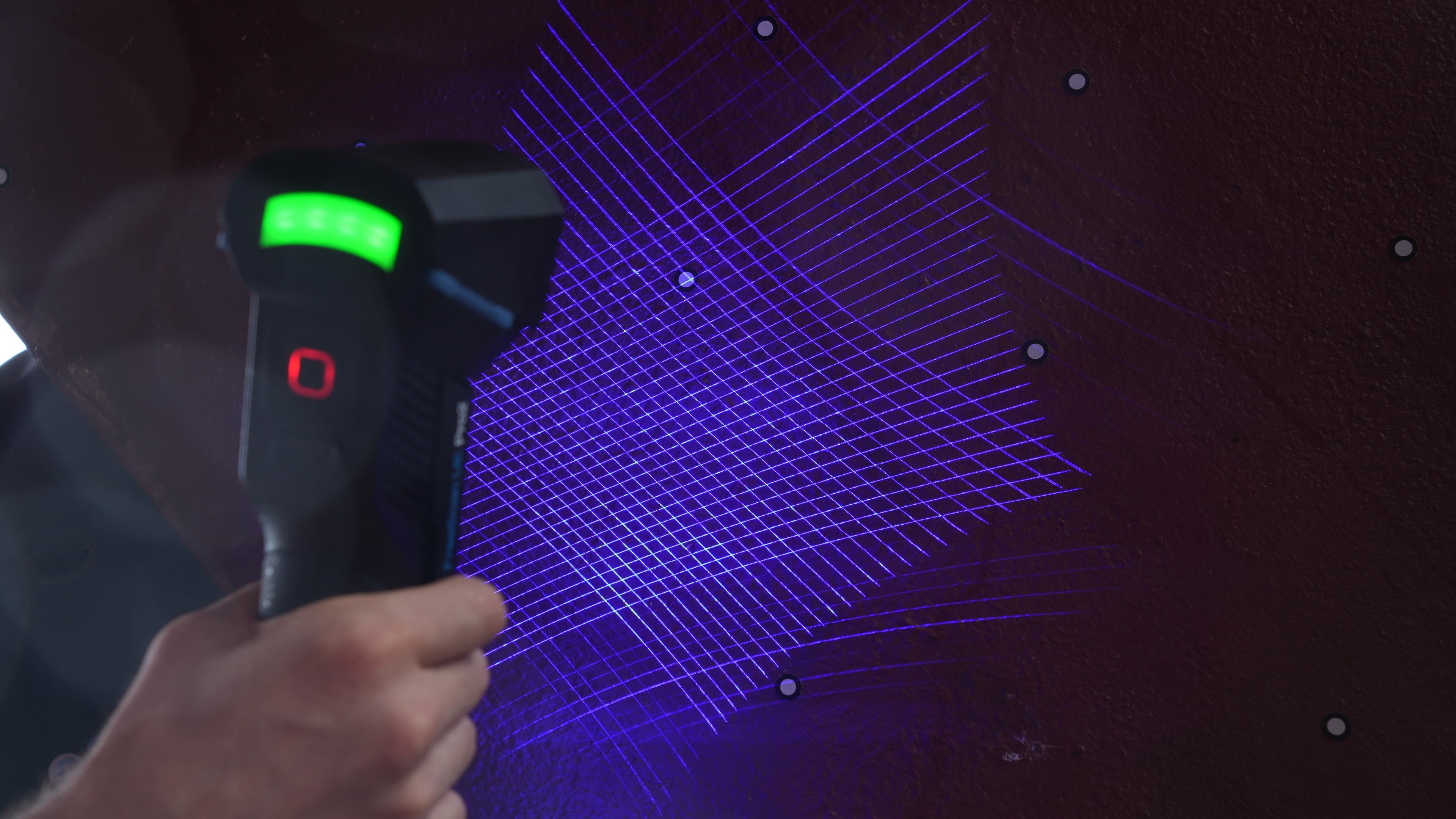

50 intersecting blue laser beams for rapid global data scanning; 7 parallel blue laser beams for precise local detail scanning; 1 single blue laser beam for deep hole stereo data acquisition; binocular photogrammetry module for global target accuracy.
Wide material compatibility.

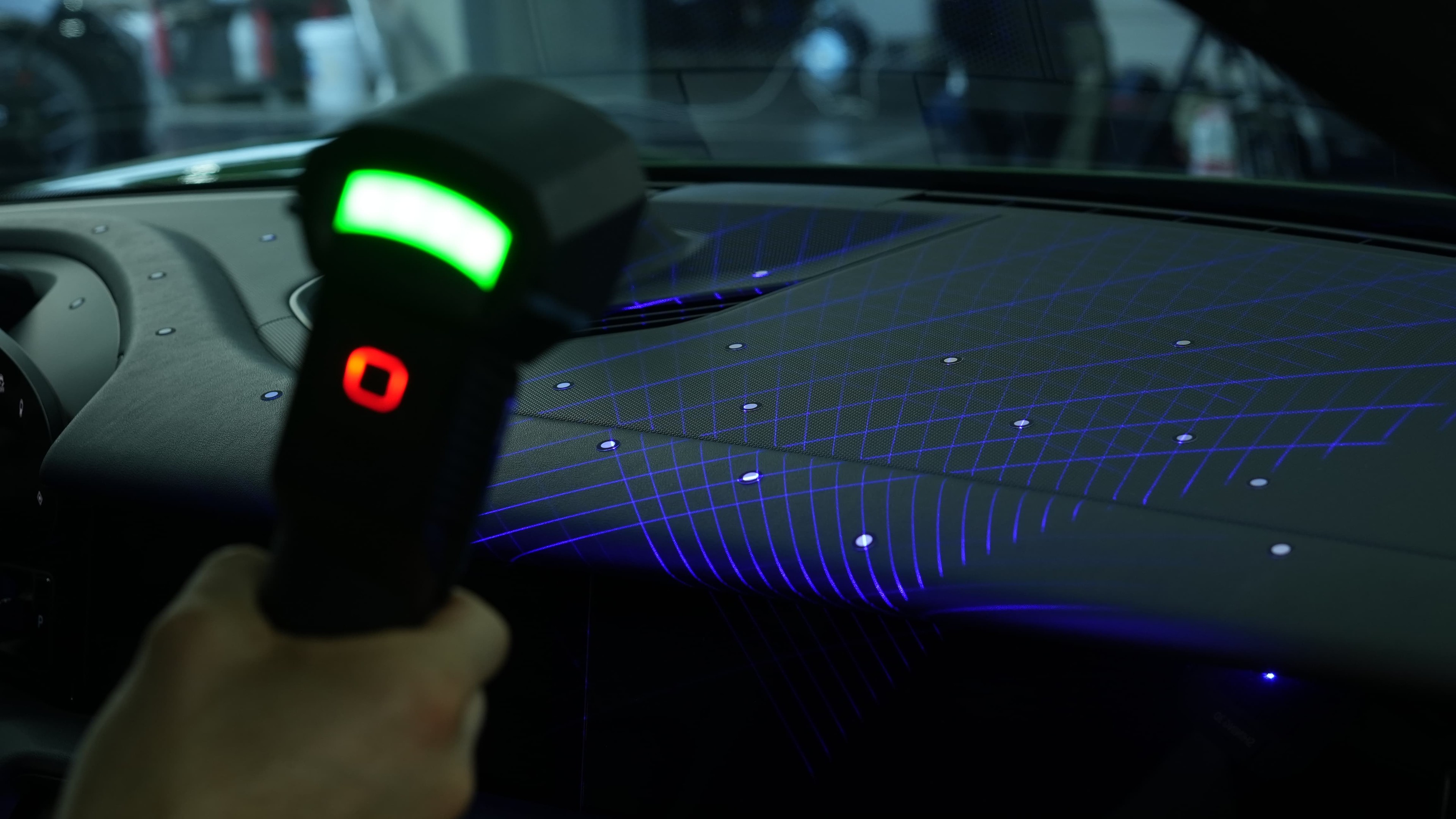

The blue laser has a wide range of material compatibility, allowing for straightforward scanning of black and highly reflective workpieces.
Guided software for ease of use.

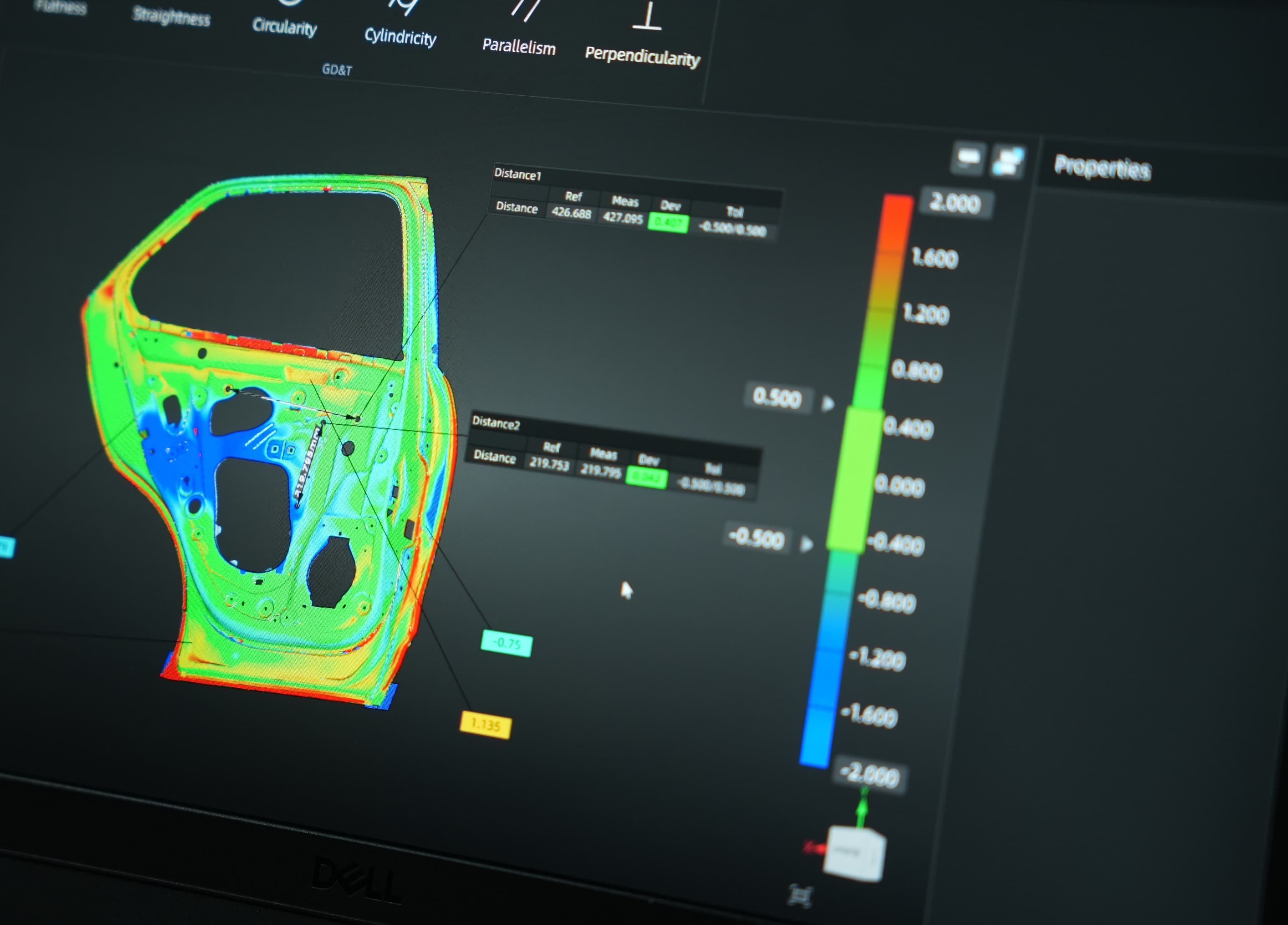

The quality spectrum clearly displays data acquisition completeness; and seamless integration with subsequent 3D inspection and design software.
