Número de modelo |
PO40 |
PO60 |
|
Tamaño |
Φ40mm×L50mm |
Φ63mm×L76mm |
|
Peso (sin soporte) |
260 g |
880 g |
|
Tipo de transmisión |
Infrarrojo de 360° |
Infrarrojo de 360° |
|
Distancia de transmisión |
5 metros |
6 metros |
|
Modo de arranque |
Código M |
Código M.Revolve |
|
Velocidad de rotación |
Máx. 1000 rpm |
Máx. 1000 rpm |
|
Fuente de alimentación |
1/2 pila AA de 3,6 V × 2 |
2 pilas AA de 1,5 V/3,6 V |
|
Dirección de activación |
±X/±Y/-Z |
±X/±Y/-Z |
|
Repetibilidad del disparo unidireccional 2δ |
1 μm |
2 μm |
|
Desbordamiento máximo*2 |
XY: 12,5 mm + Z: 6 mm |
XY: 21 mm + Z: 11 mm |
|
Fuerza de activación XY*3 |
0,5 N ~ 0,9 N |
Ajustable de 0,5 N a 1,6 N |
|
Fuerza de activación Z |
5,8 N |
Ajustable de 3,5 N a 14 N |
|
Solicitud |
Centro de mecanizado de 3 y 5 ejes para máquinas pequeñas y medianas. |
Gran máquina herramienta de pórtico, centro de mecanizado horizontal |

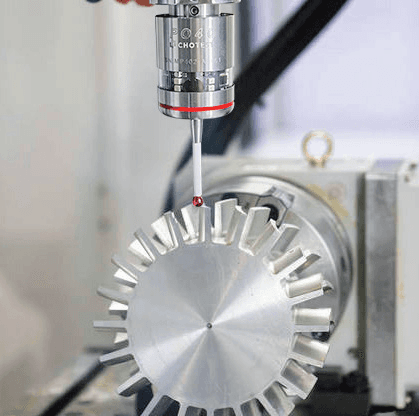

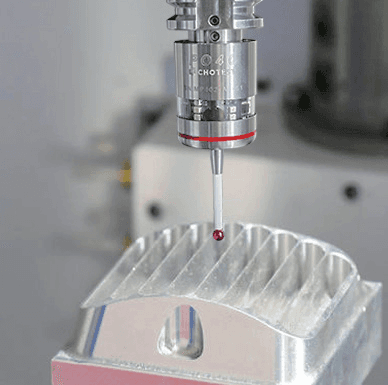

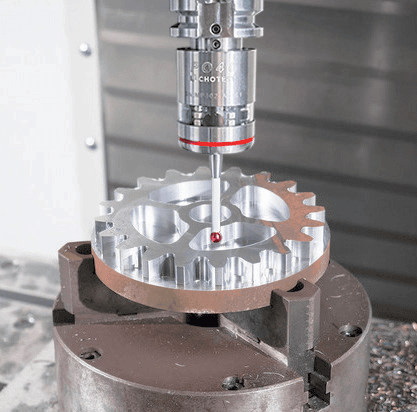

When the stylus is displaced radially or axially by an external force, the trigger unit is activated.
The probe’s internal circuit sends a trigger signal to the receiver, which then transmits it to the machine.
The current coordinates of each machine axis are automatically recorded.
Measurement results are finally calculated from the coordinate data of the relevant points.
Aplicaciones
Automobile manufacturing and auto parts industry
Automatic workpiece alignment, centering and coordinate setting; measurement of hole diameter, hole pitch, groove width and step height; inspection of key surfaces including flatness, perpendicularity and coaxiality.
Aerospace manufacturing industry
Profile and wall thickness measurement for complex cavities, deep cavities and frame-beam parts; profile inspection for blades, blisks and casings; control of position and coaxiality of key assembly holes.
Mold manufacturing industry
Inspection of mold deep cavities, sharp corners and slider positions; measurement of position accuracy for mold parting surfaces, support surfaces and ejector pin holes.
Precision instrument and meter industry
High-precision measurement of micro-holes, narrow grooves and thin-walled parts; dimensional control for optical components, sensor housings and micro-structures.
Construction machinery manufacturing industry
Actual measurement and machining coordinate correction for deformed welded parts; inspection of articulated holes, pin shaft holes and mounting surface flatness.
New energy equipment manufacturing industry
Monitoring of flatness and hole pitch for battery pack housings and end covers; dimensional inspection of thin-walled parts and flow field plates for photovoltaic / hydrogen energy equipment.
No hay ningún vídeo disponible
Reflejos
1
High repeatability: One-way repeatability <1μm
2
Long standby time: As long as 6 months
3
Omnidirectional energy-absorbing design: 360* omnidirectional energy-absorbing design,which helps to cushion the spindle in impact when an operating accident occurs
4
Waterproof design: lP68 for probe and receiver
5
Intelligent LED indicators: Show current working status of the probe
