DTMS-DPG |
DTMS-DPG-SP |
||
|
Rango de medición |
Eje X |
100 mm-200 mm |
|
|
Resolución del eje X |
0,1 μm |
0,01 μm |
|
|
Eje Z1 |
±8 mm/±12 mm/±15 mm |
||
|
Resolución del eje Z1 |
0,02 μm |
0,01 μm |
|
|
Eje Z |
250 mm-650 mm |
||
|
Resolución del eje Z |
0,1 μm |
0,1 μm |
|
|
Rango de medición de rosca |
≤260 mm |
≤360 mm |
|
|
Precisión en la medición de roscas (Columna) |
Radio grande, mediano y pequeño |
±(4+0,04H)μm |
±(2+0,04H)μm |
|
Paso |
≤±(1,5+0,05L)μm |
≤±(0,5+0,02L)μm |
|
|
Precisión del contorno |
Precisión lineal X |
±(1,6+0,05L)μm |
±(1,4+0,02L)μm |
|
Precisión lineal Z1 |
±(0,8+0,05H)μm |
±(0,6+0,02H)μm |
|
|
Ángulo |
≤1′ |
||
|
Arco |
≤±(1,8+R/12)μm |
≤±(1,5+R/12)μm |
|
|
Rectitud del eje X |
0,8 μm/100 mm |
0,5 μm/100 mm |
|
|
Rectitud del eje Z |
0,9 μm/100 mm |
0,6 μm/100 mm |
|
|
Precisión de rugosidad |
Error de indicación |
±(10 nm + 0,035 A) |
±(7nm+0,03A) |
|
Ruido de valor residual |
≤0,01 μm |
≤0,007 μm |
|
|
Repetibilidad |
6% |
4% |
|
|
Dirección de medición |
Bidireccional |
||
Dimensions: including horizontal distance, vertical distance, linear distance, radius, diameter
Angle: including horizontal angle, vertical angle, pinch angle
Position tolerance: including parallelism, perpendicularity
Shape tolerance: including straightness, convexity, round contour degree
Auxiliary generation: including auxiliary points, auxiliary lines, auxiliary circles
Roughness Analysis: Ra, Rq, Rz(Ry), Rz(DIN), R3z, Rz(jis), Rp, Rv, Rt, Rsk, Rsm, Rc, Rpm, Rku, Rdq, Roc, Mr1, Mr2, Rpk, Rvk, Rk, Rdc, A1, A2, R, Rx, AR, Rcp, Rmax, Rz-ISO
Waviness Analysis: wt, wa, wp, wv, wq, wc, wku, wsk, w, wx, wz, wsm, wdc, wte, wmr, Aw, c(wmr), wmr(c), wdq
Original contour parameters: Pa, Pt, Pp, Pc, Pv, Pz, Pq, Psm, Psk, Pku, RzJ, Rpq, Rvq, Rmq, Pmr, P△q, Avh, Hmax, Hmin, Area, Pδc, Tilta, Motif
Thread Measurement Function: Comprehensive parameters of threads can be detected,Large slope threads such as trapezoidal threads, partial trapezoidal threads, and serrated threads can be detected.
Aplicaciones
Machinery Manufacturing Industry

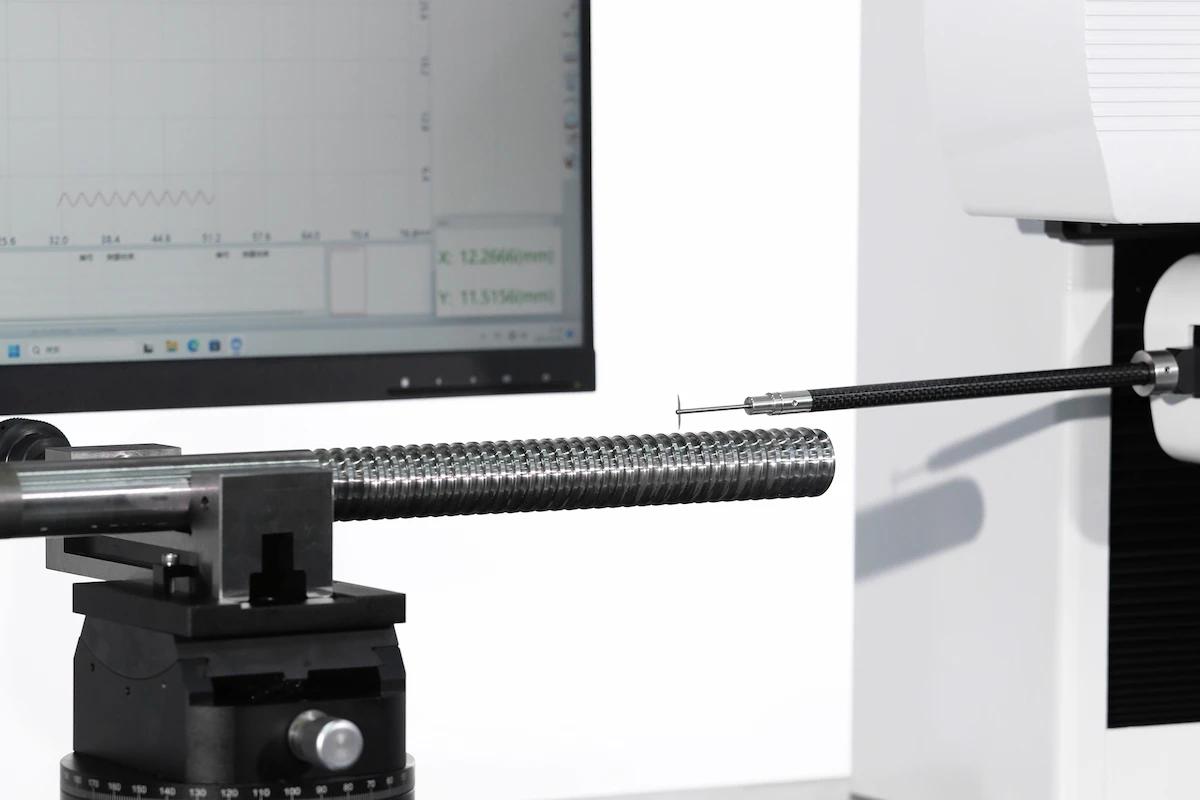

Measuring threaded components such as bolts, nuts, lead screws, taps and threaded shafts in various mechanical equipment; applicable to the calibration and testing of spindle threads of machine tools and threaded interfaces of fixtures.
Automotive and Component Industry

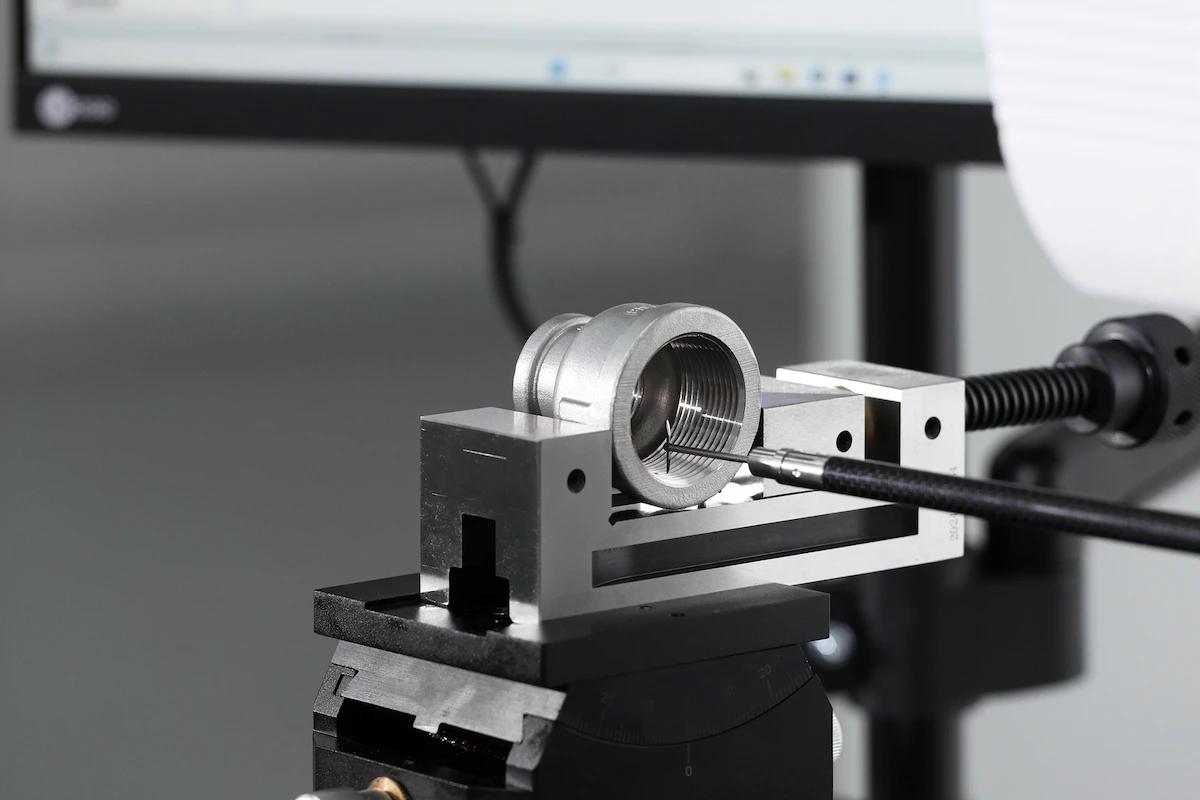

Threaded holes of engine blocks, threaded connectors of chassis suspensions, gear threads of gearboxes, wheel bolts and nuts of automobiles, etc.
Aerospace Industry
Threaded components in the aerospace field (e.g., threaded pins of aircraft landing gears, threaded joints of rocket engine pipelines, threaded connectors of spacecraft structural components).
Petrochemical Industry
Oil drilling and production equipment (e.g., threaded joints of drill pipes, tubing threads), threaded flanges of chemical pipelines, threaded connectors of valves, etc.
Casos de aplicación

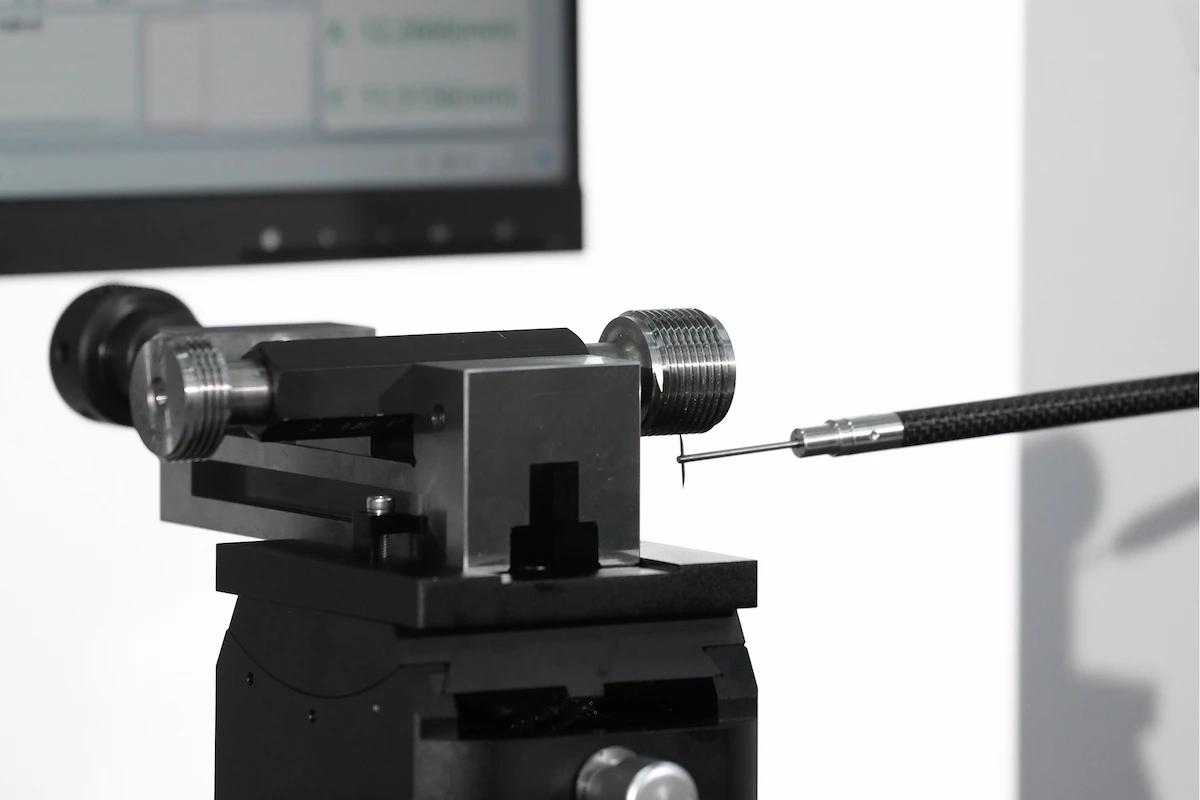

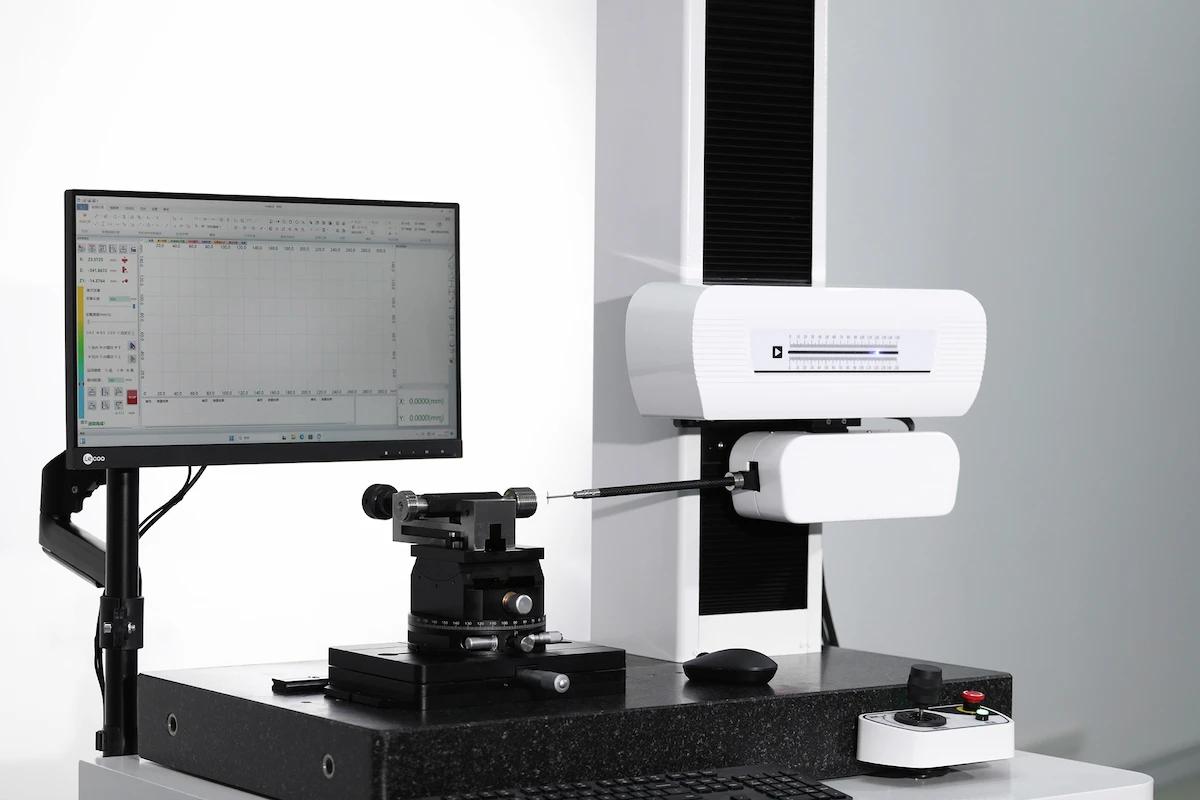

Reflejos
X-axis adopts ultra-precision linear guide, high precision and long life. Z1 axis adopts imported digital sensor, high precision and good linearity
Easy stylus replacement design, one-time installation, no calibration required
The software supports one-click switching between English and Chinese. Automatic recognition of circular arcs and lines. The software has a shortcut key function, easy to use
Support DXF format file import and export, custom CAD format export
Support continuous annotation, reference annotation, and support any insertion point
Support graphics free rotation and coordinate free rotation. Automatic saving of original data for multiple labeling
Mirroring function to save post-markup files
Support straight groove splicing function and automatic labeling function. Save annotation templates for automatic secondary annotation
Monitoring of the current position of the X and Z1 axes is possible.
With automatic stylus contact, automatic lifting, and automatic retraction function.Unlimited undo and resume operations are possible.
When the snap switch is turned on, feature points such as intersection, circle center, line segment midpoint, endpoint, arc intersection, midpoint, and tangent point are automatically generated and captured.
Normal angular, circular, horizontal, vertical, and linear annotations can be performed even in the case of non-scaled enlargement.
