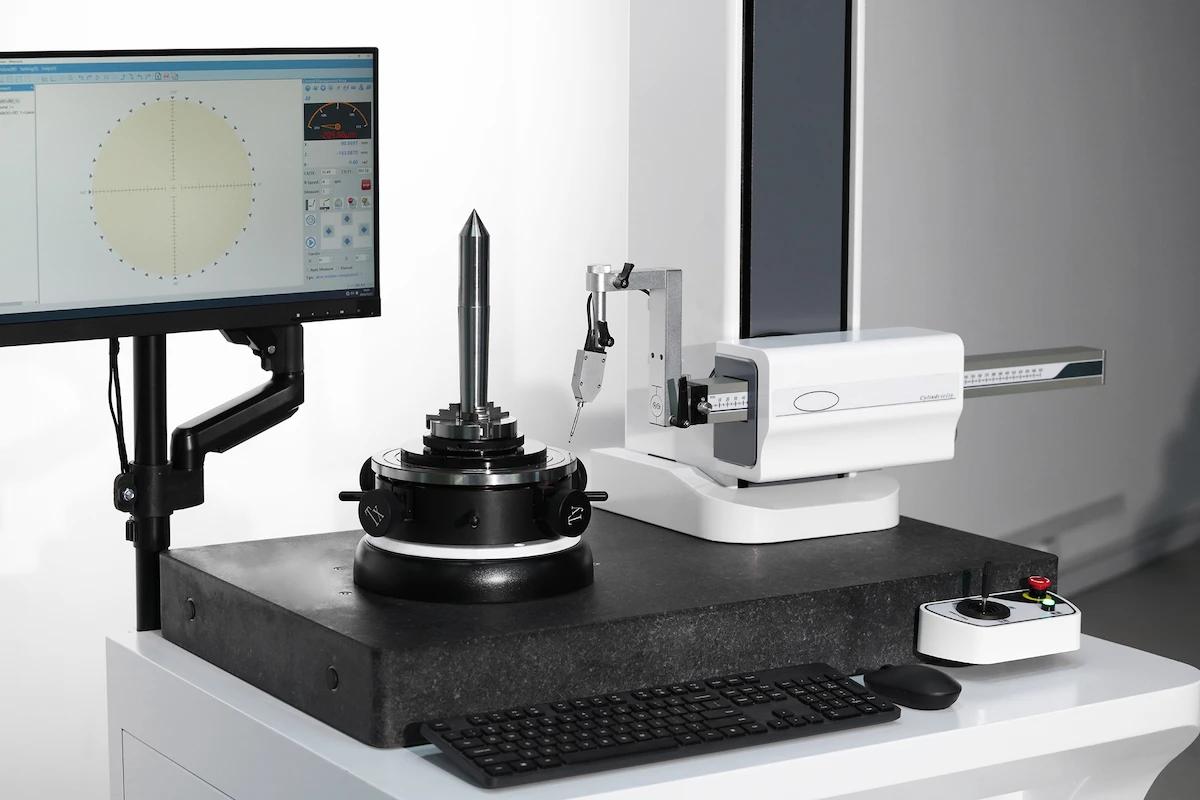

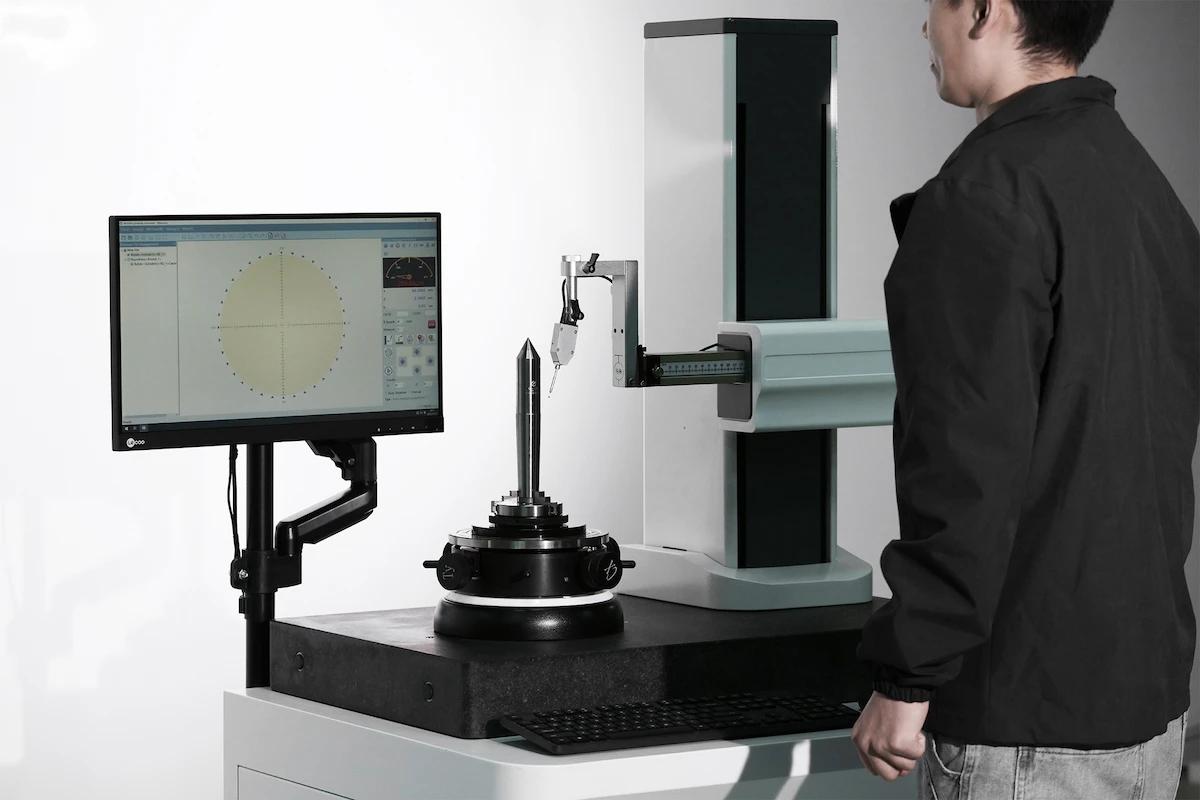

DRMC30 |
DRMC65 |
DRMC95 |
DRMC95CNC |
||
|
Rango de medición |
Diámetro máximo de rotación de la pieza de trabajo |
320 mm |
420 mm |
420 mm |
420 mm |
|
Diámetro máximo de medición |
270 mm |
370 mm |
|||
|
Altura máxima de medición |
300 mm |
400 mm |
500 mm |
500 mm |
|
|
Profundidad máxima |
100 mm (Determinado por la longitud de la varilla de medición) |
||||
|
Carga máxima |
25 kg |
40 kg |
60 kg |
30 kg |
|
|
Husillo con cojinete de aire |
error radial del husillo |
(0,025+4H/10000)μm |
|||
|
error axial del husillo |
(0,025+4X/10000)μm |
||||
|
Mesa de trabajo Sensor |
Diámetro de la mesa |
200 mm |
280 mm |
||
|
Rango de ajuste |
Ajuste la excentricidad ±3 mm; ajuste el nivel ±1°. |
||||
|
Método de ajuste |
Manual |
Automático |
|||
|
Rectitud |
0,3 μm/100 mm |
0,2 μm/100 mm |
|||
|
Rejilla |
Resolución de rejilla vertical (opcional) |
0,05/0,1/0,5/1 μm |
|||
|
Resolución de la rejilla del riel guía horizontal (opcional) |
0,05/0,1/0,5/1 μm |
||||
|
Paralelismo entre el husillo y el eje Z |
1,5 μm/300 mm |
2 μm/400 mm |
2,5 μm/500 mm |
||
|
Sensor |
desplazamiento horizontal |
250 mm |
270 mm |
||
|
Rango |
±500 μm |
||||
|
Módulos opcionales |
Análisis de ondulaciones/armónicos/espectro RTA |
||||
Analysis functions: Surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis.
Roundness assessment methods: Minimum area method, least squares method, minimum circumscribed circle method, maximum inscribed circle method.
Roundness filtering methods: 1-500, 1-150, 1-50, 1-15, 15-500.
Waviness filtering ranges: 3-16, 3-17, 17-100.
Abnormal Data Rejection: Manual or Automatic.
Automatic Saving of Measurement Data to Database.
(Optional) Measurement of Cross-sectional Ellipticity and Longitudinal Profile of Piston Outer Circle.
Aplicaciones
Precision Machinery Manufacturing Industry

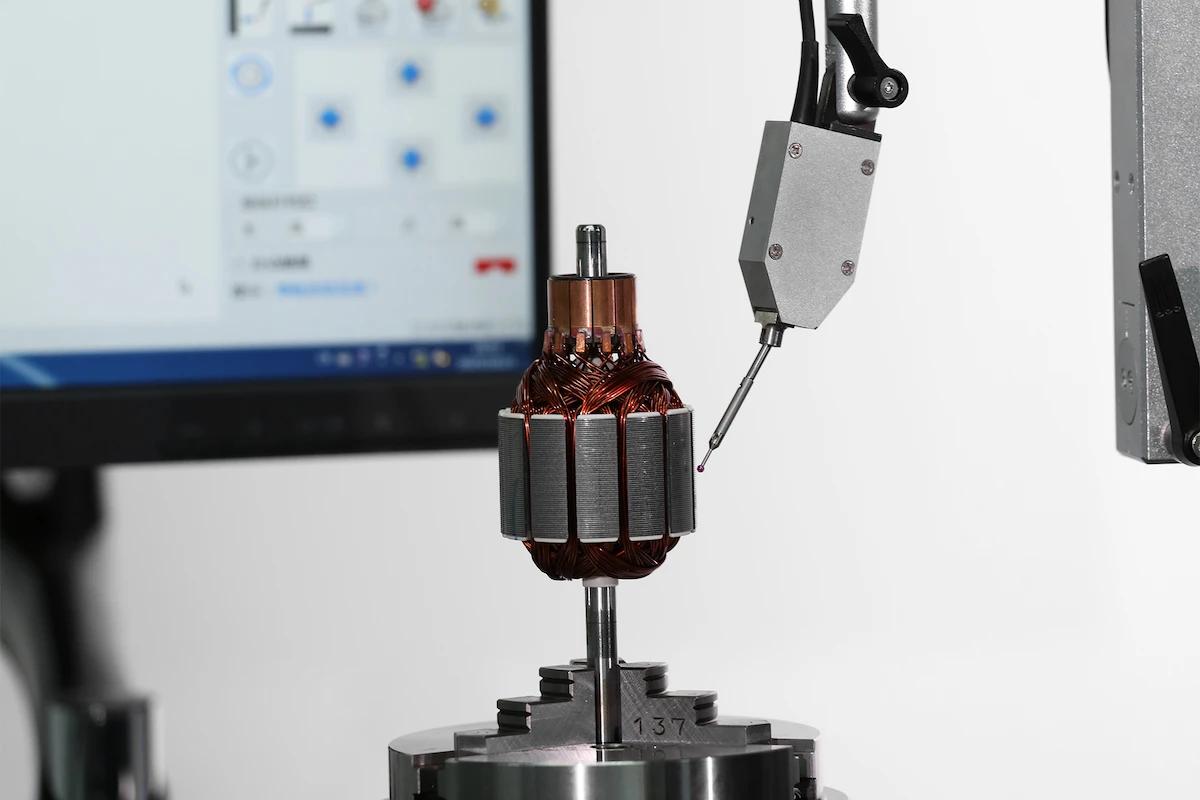

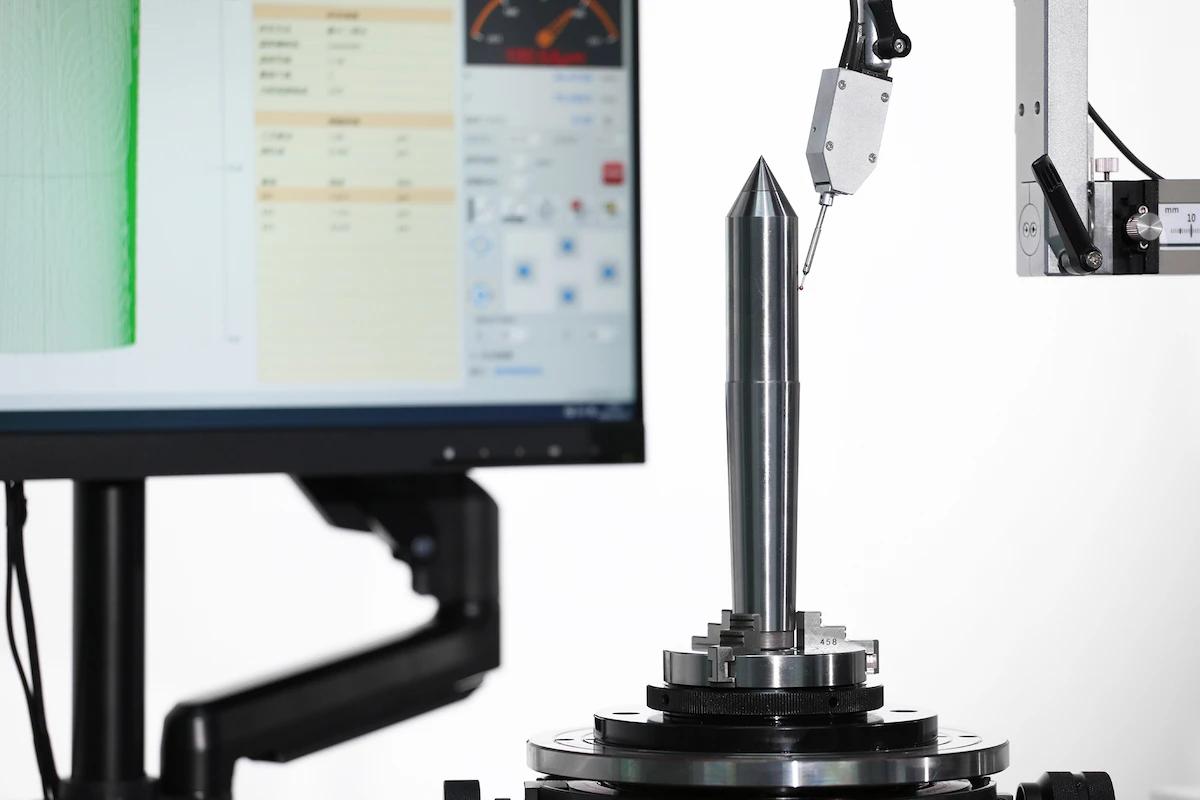

Cylindricity measurement of motor spindles, precision drive shafts, hydraulic cylinder barrels, etc.

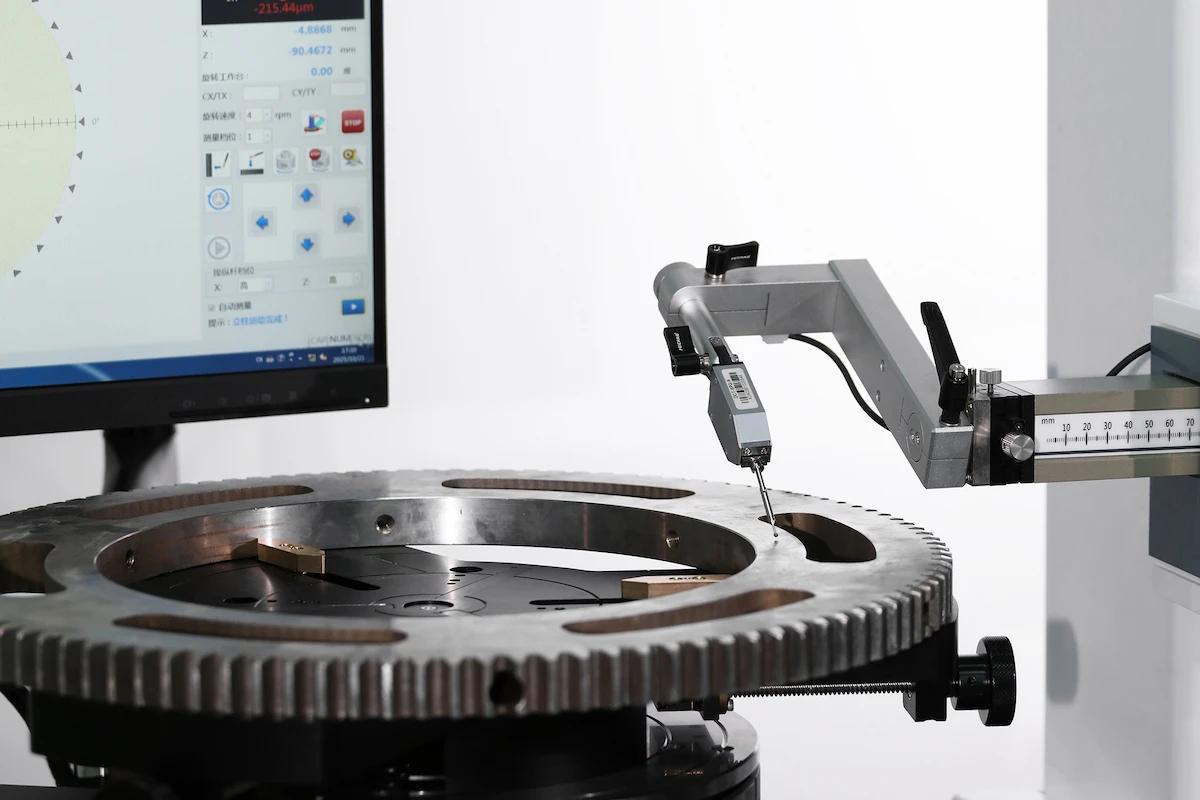

Bearing Manufacturing Industry
The inner ring and outer ring raceways of bearings are typical high-precision cylindrical surfaces.
Automotive and Component Manufacturing Industry
Core rotating components such as engine crankshafts, camshafts, piston pins, and transmission drive shafts.
Aerospace Manufacturing Industry
Aero-engine turbine shafts, landing gear hydraulic piston rods, spacecraft attitude adjustment shafts, etc.
Hydraulic and Pneumatic Component Manufacturing Industry
Cylindricity inspection of parts including hydraulic cylinder barrels, piston rods, and pneumatic valve cores.
Measuring Tool and Gauge Manufacturing Industry
Used for calibrating the cylindricity of measuring instruments such as micrometer rods, gauge cylindrical surfaces, and standard measuring bars.
No hay ningún vídeo disponible
Reflejos
It adopts a high-precision rotating aerostatic bearing structure,achieving an accuracy of up to ±0.0125μm.
The spindle utilizes an air-floating structure, ensuring wear-resistant performance, ensuring long-lasting accuracy and instrument life.
Data acquisition utilizes imported precision circular gratings, collecting 14,400 points per week for high accuracy and excellent stability.

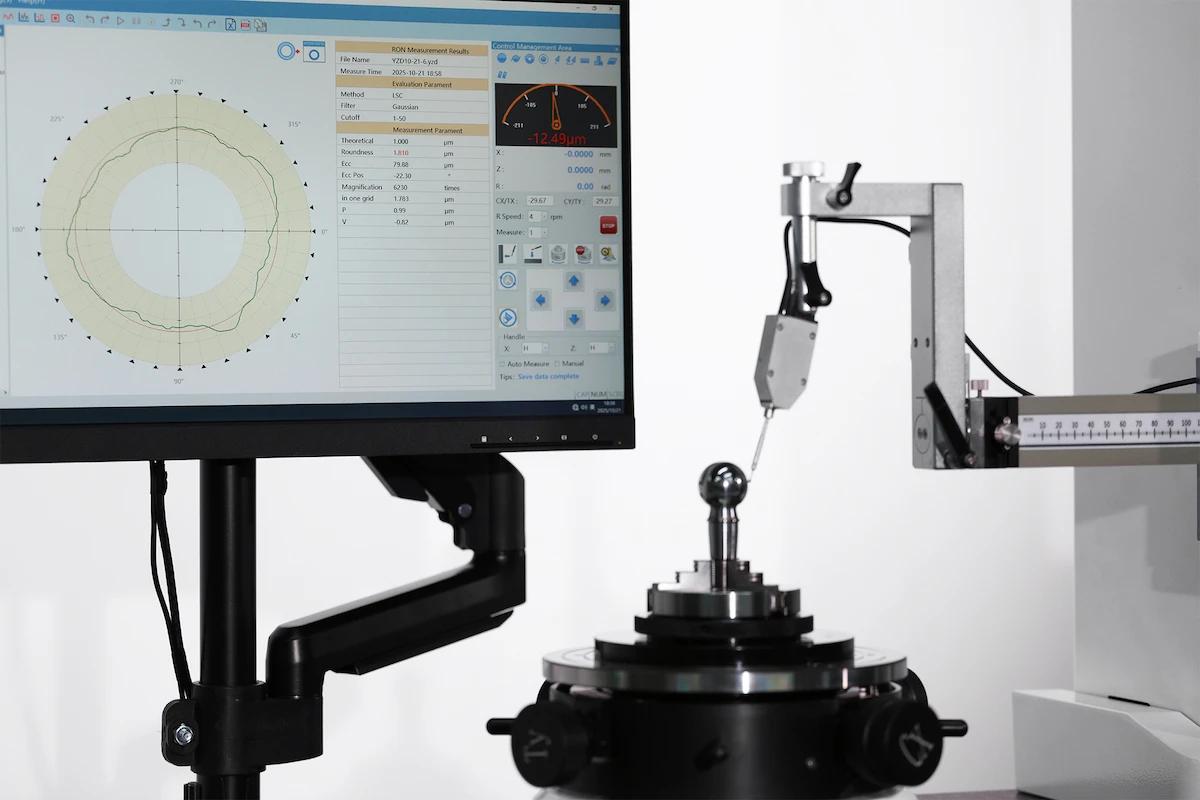

Windows-based CA measurement software offers an intuitive and user-friendly interface, easy operation, and a wealth of measurement functions.
It features automatic recognition of contour discontinuities, as well as automatic elimination of gaps and abnormal points.
Roundness measurement for partial arcs.
Powerful analysis capabilities, including taper, diameter, waviness, wave height, and frequency spectrum analysis.
(Optional)SPC statistical analysis: Analyzes large amounts of measurement data and generates graphical analysis reports.
Measurement parameters can be judged by setting process requirements, enhancing the visibility of quality control.
