DRM-1000 |
DRM-3000 |
DRM-5000 |
DRM-5000CNC |
||
|
Rango de medición |
Diámetro máximo de medición |
300 mm |
400 mm |
500 mm |
500 mm |
|
Altura máxima de medición |
350 mm |
500 mm |
500 mm |
500 mm |
|
|
Profundidad máxima |
Sonda estándar: 100 mm (para aperturas menores de 36 mm); soporte no estándar con capacidad de medición de hasta 300 mm (opcional para aperturas mayores de 36 mm). |
||||
|
Carga máxima |
30 kg |
50 kg |
80 kg |
500 kg |
|
|
Husillo con cojinete de aire |
error radial del husillo |
(0,025+0,0005H)μm |
(0,025+0,0005H)μm |
(0,035+0,0005H)μm |
(0,02+0,0005H)μm |
|
error axial del husillo |
(0,025+0,0006X)μm |
(0,025+0,0006X)μm |
(0,03+0,0006X)μm |
(0,02+0,0006X)μm |
|
|
Mesa de trabajo Sensor |
Diámetro de la mesa |
150 mm |
200 mm |
320 mm |
500 mm |
|
Rango de ajuste |
Ajuste la excentricidad ±3 mm; ajuste el nivel ±1°. |
||||
|
Diámetro de giro |
320 mm |
420 mm |
650 mm |
700 mm |
|
|
Brazo horizontal |
Rango de medición |
500 μm (diferencia de radio) |
|||
|
Forma del lápiz óptico |
Sonda esférica Gem de φ2 mm (opcional: palpador de φ1 mm o φ0,5 mm) |
||||
|
Husillo con cojinete de aire |
desplazamiento horizontal |
150 mm |
180 mm |
200 mm |
200 mm |
|
Velocidad de movimiento |
0,5-6 mm/s o manualmente |
||||
Analysis functions: Surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis
Roundness assessment methods: Minimum area method, least squares method, minimum circumscribed circle method, maximum inscribed circle method
Roundness filtering methods: 1-500, 1-150, 1-50, 1-15
Waviness filtering ranges: 3-16, 3-17, 15-500, 17-100
Optional ruby styli of various sizes available
Aplicaciones
Automotive Manufacturing Industry
Inspects the surface roughness and contour parameters of key components such as engine parts, gearbox gears, pistons, and crankshafts to ensure assembly fit.
Aerospace Industry
Used for contour and roughness inspection of aero-engine blades, landing gear structural components, and precision aerospace parts to meet high reliability requirements.
Precision Machining Industry
Inspects the tooth profile, threads, grooves, and other contour parameters and roughness of precision components such as cutting tools, molds, bearings, and lead screws to ensure machining accuracy.
Mold Industry
Inspects the contour and roughness of cavities and cores of injection molds and stamping dies to ensure consistency between mold processing quality and finished products.

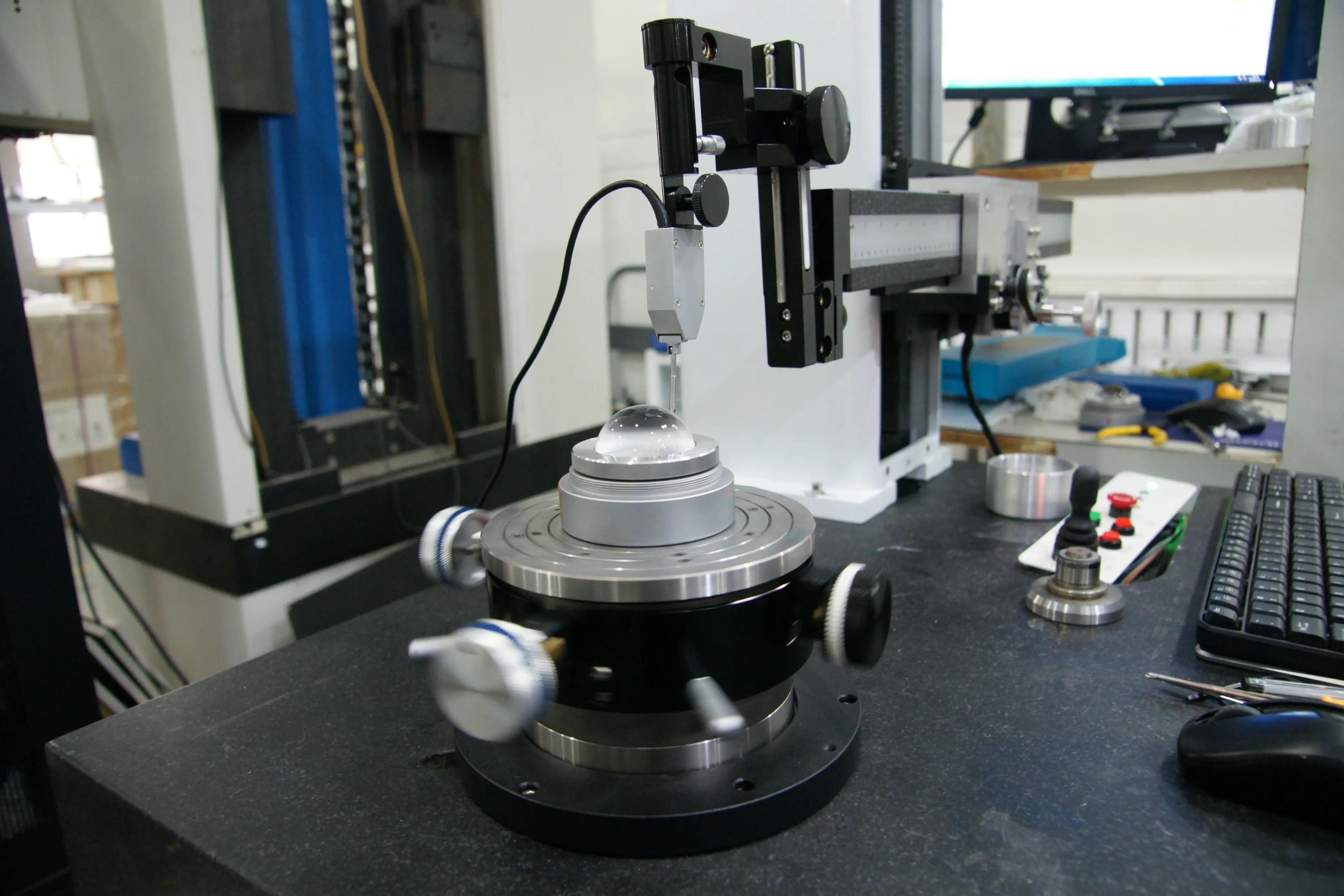

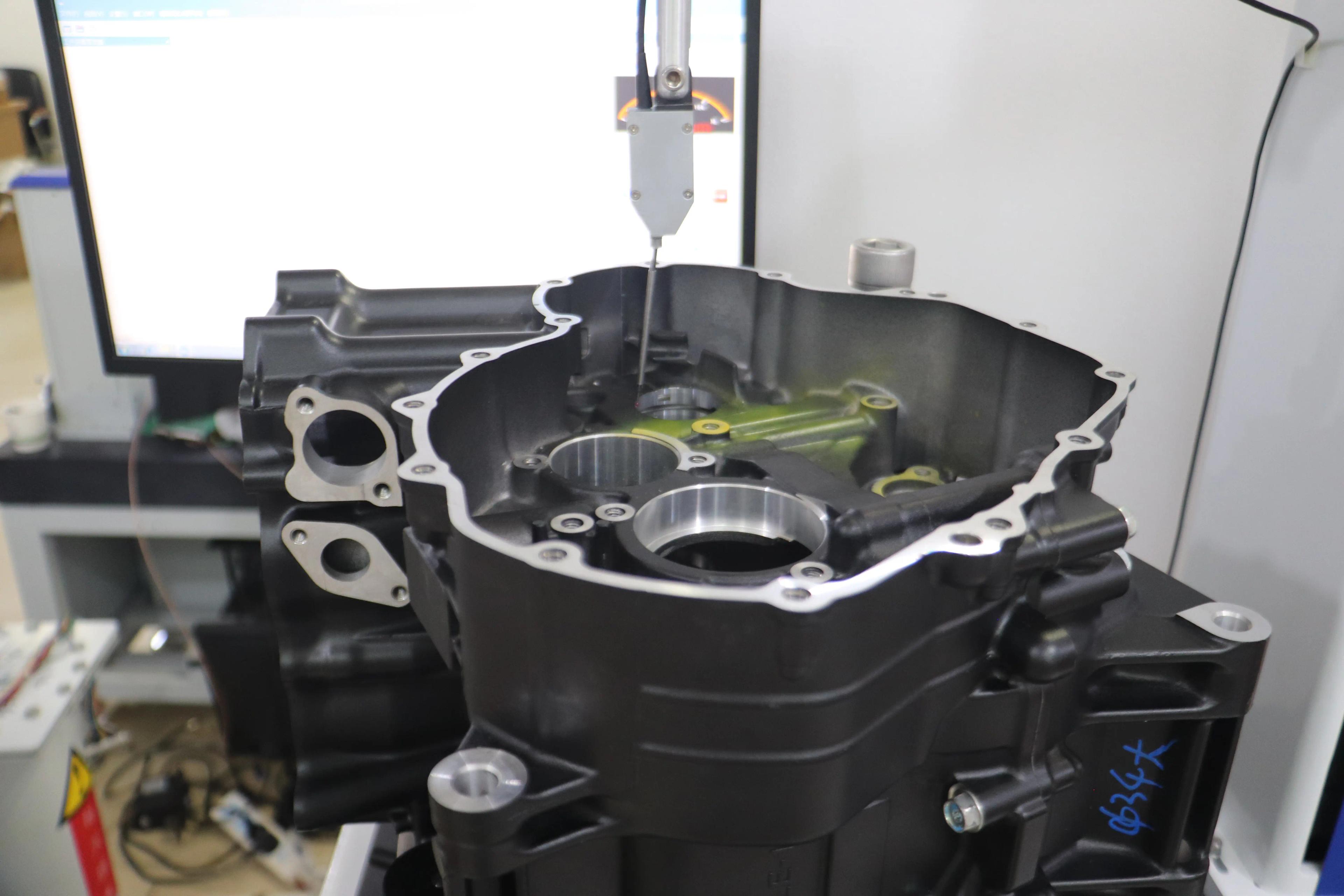

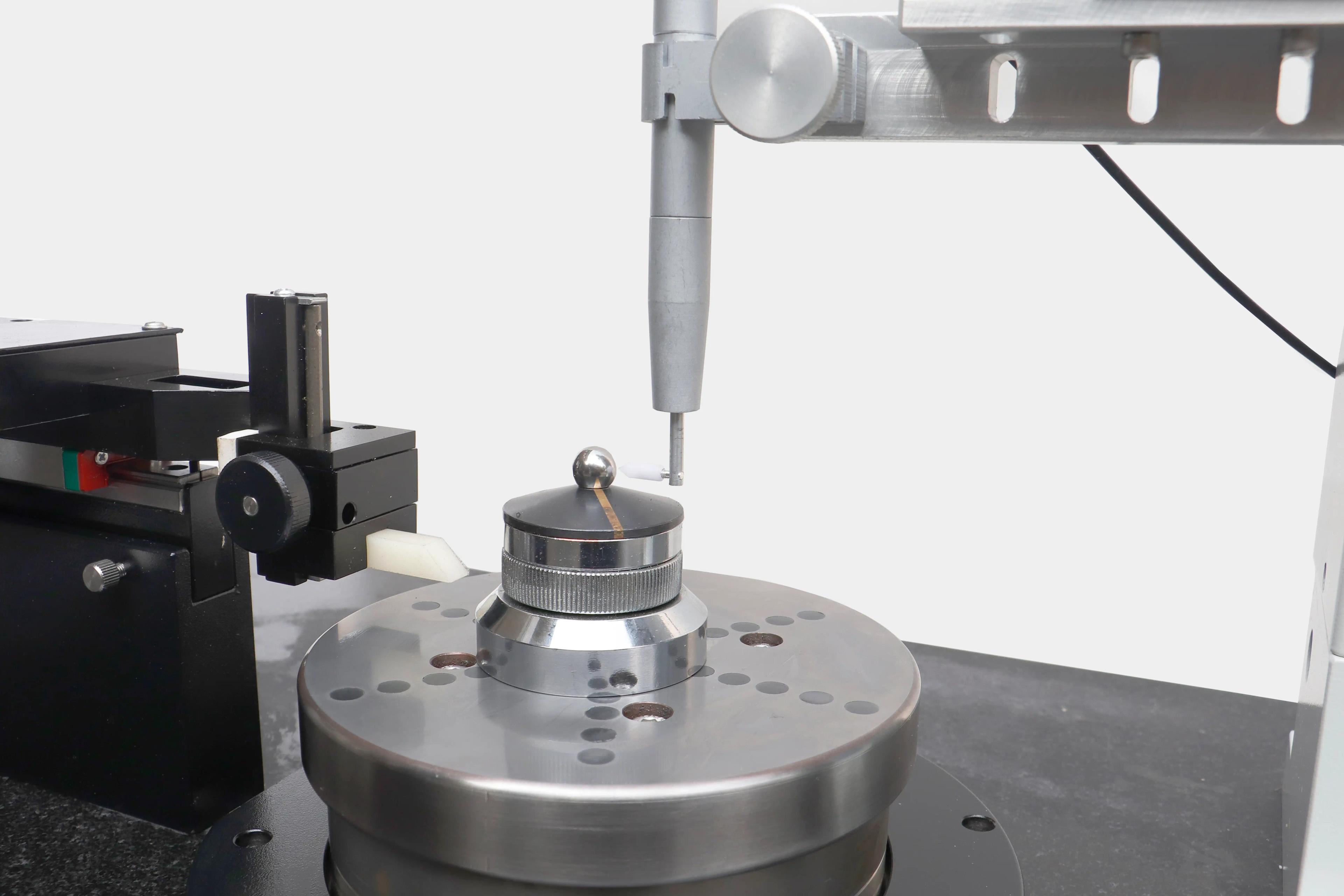

Casos de aplicación
Reflejos

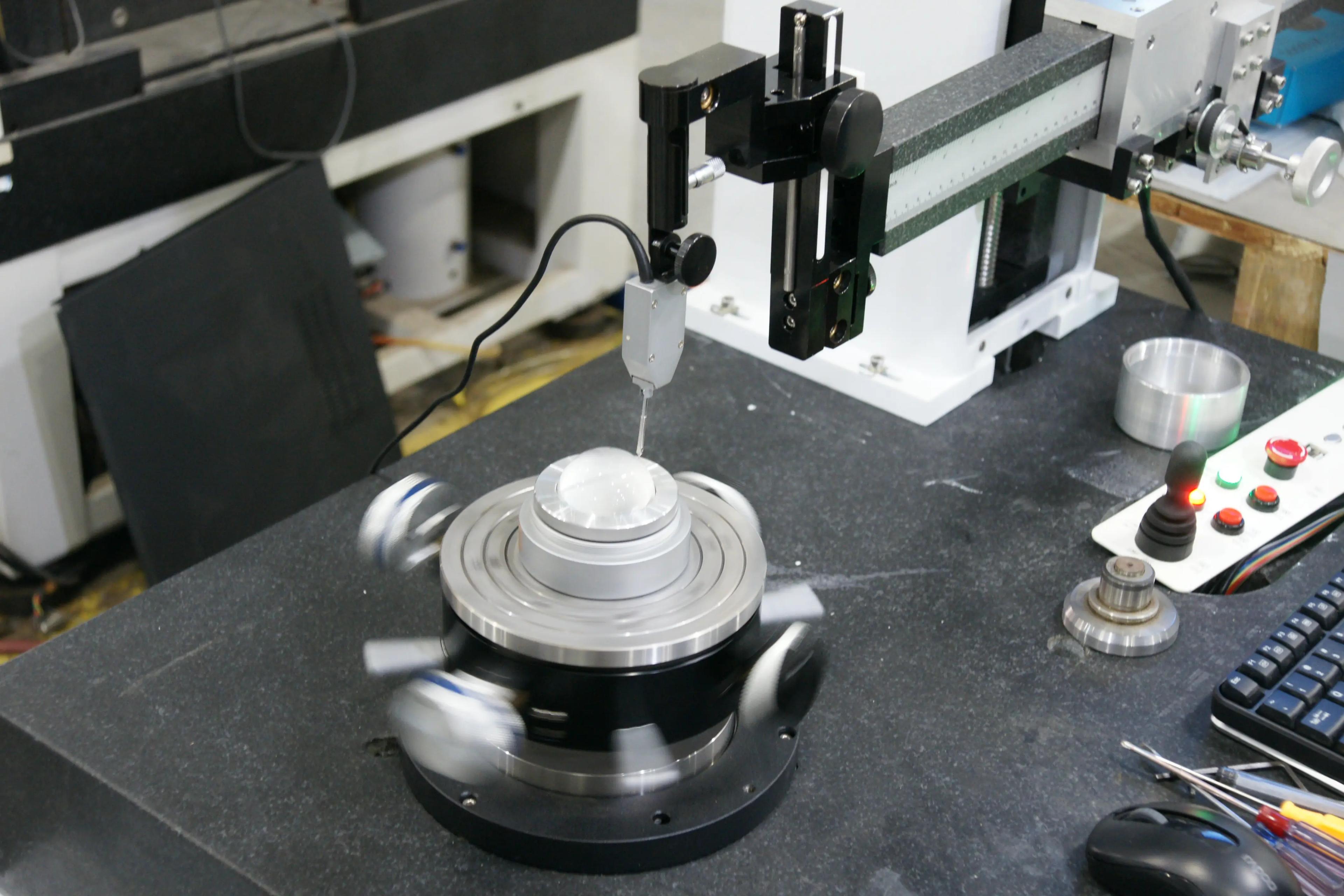

High-Precision Aerostatic Bearing Accuracy
Accuracy: It adopts a high-precision rotating aerostatic bearing structure, achieving an accuracy of up to ±0.0125μm.
Air-Floating Spindle for Long Service Life
Lifespan: The spindle utilizes an air-floating structure, ensuring wear-resistant performance, ensuring long-lasting accuracy and instrument life.

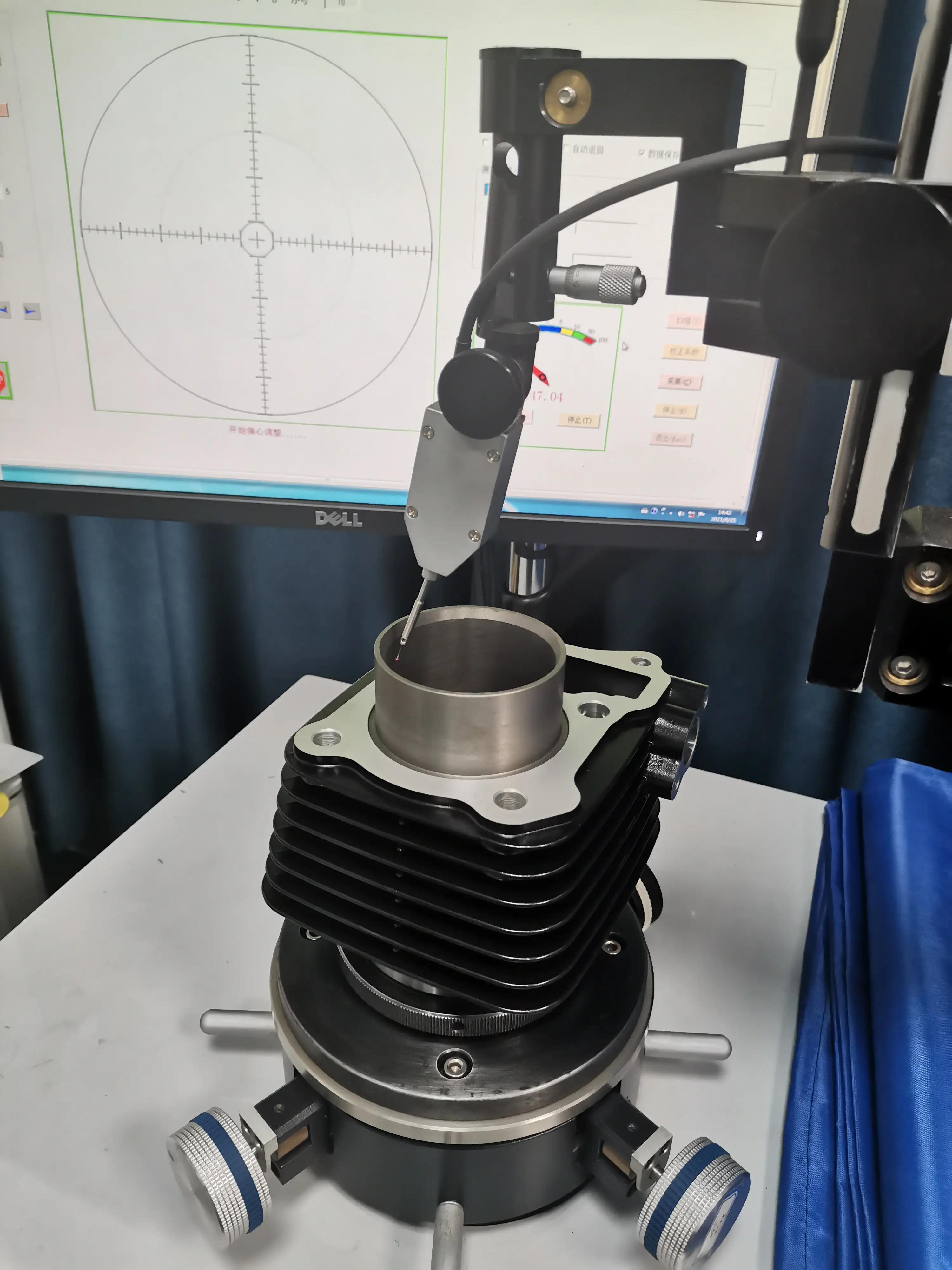

Imported Grating High-Stability Data Acquisition
Data acquisition utilizes imported precision circular gratings, collecting 14,400 points per week for high accuracy and excellent stability.
User-Friendly Windows CA Measurement Software
Windows-based CA measurement software offers an intuitive and user-friendly interface, easy operation, and a wealth of measurement functions.

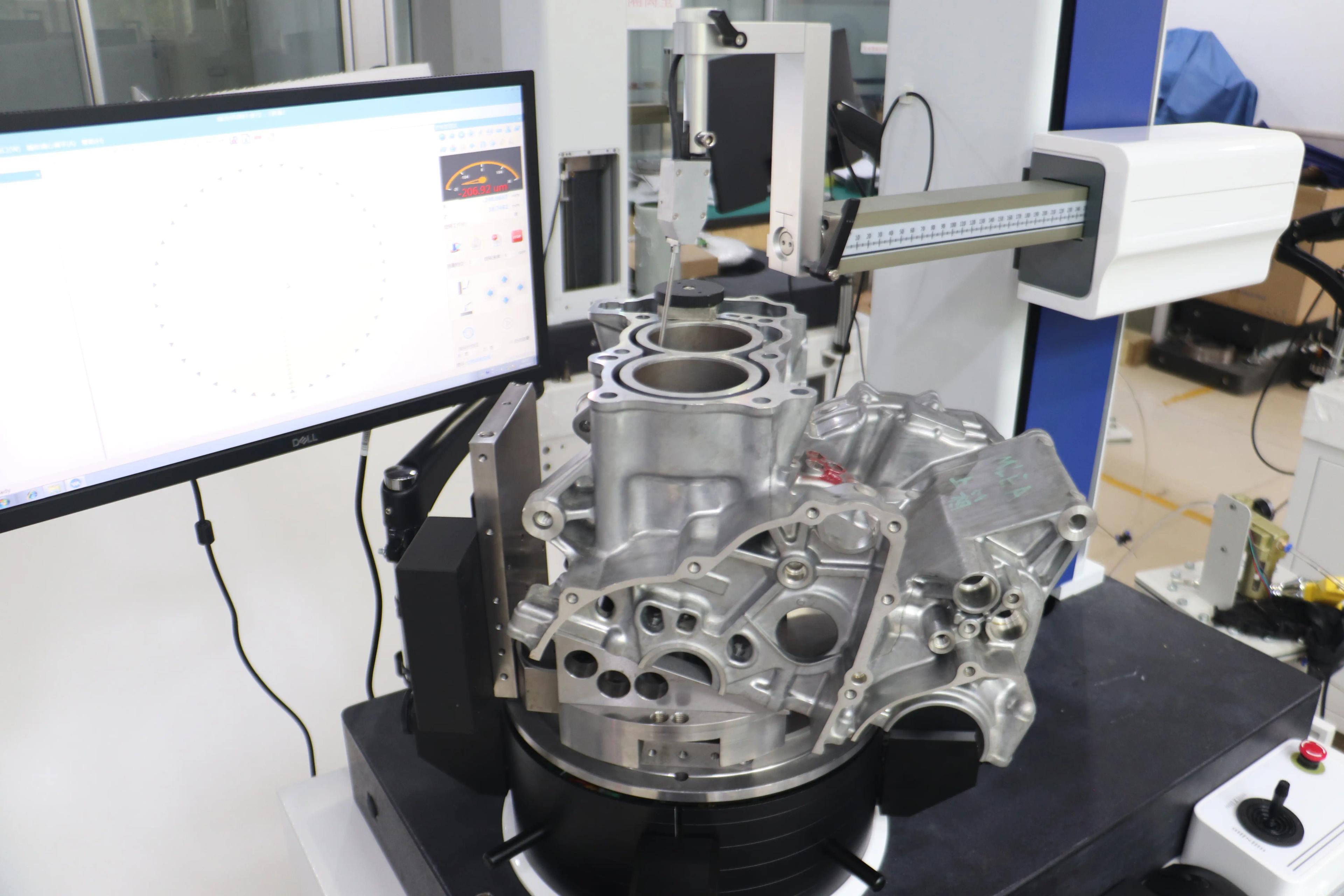

Automatic Contour Discontinuity Recognition & Correction
It features automatic recognition of contour discontinuities, as well as automatic elimination of gaps and abnormal points.

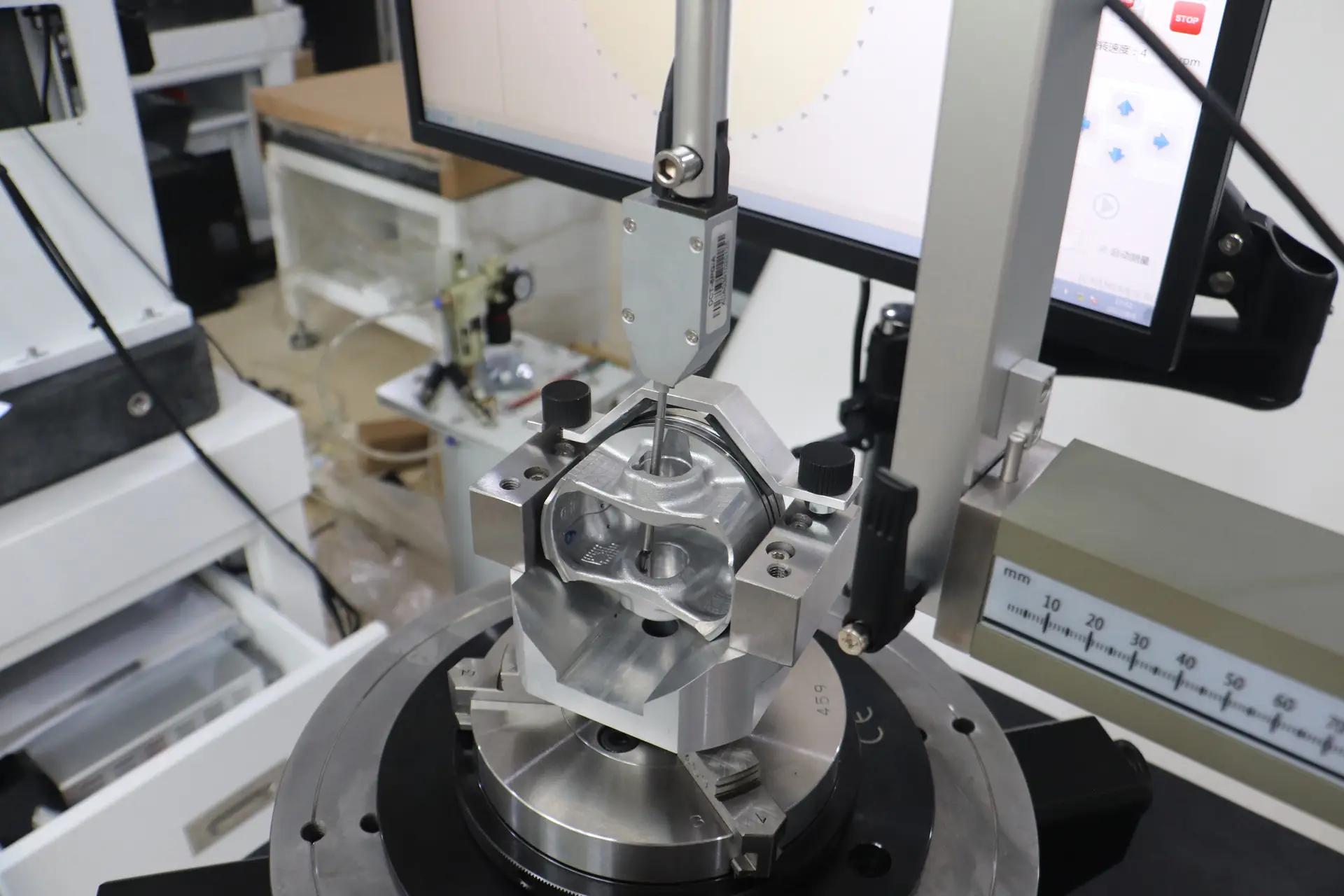

Partial Arc Roundness Measurement
Roundness measurement for partial arcs.

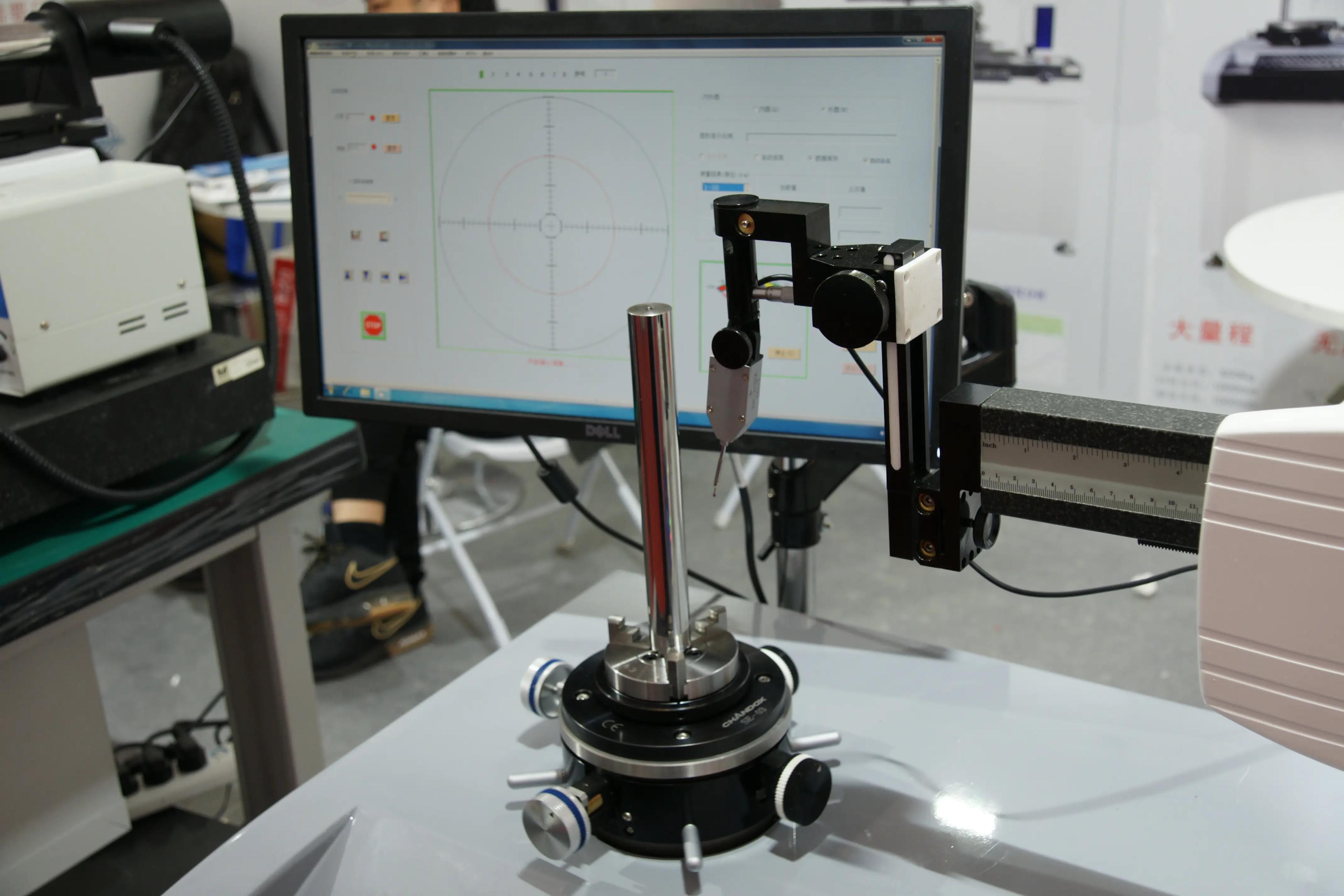

Multi-Parameter Comprehensive Analysis Capability
Powerful analysis capabilities, including taper, diameter, waviness, wave height, and frequency spectrum analysis.
SPC Statistical Analysis & Graphical Reporting
SPC statistical analysis: Analyzes large amounts of measurement data and generates graphical analysis reports.
Process Requirement-Based Quality Control Judgment
Measurement parameters can be judged by setting process requirements, enhancing the visibility of quality control.
