OptimScan Q12 |
||
|
扫描模式 |
范围广泛 |
小范围 |
|
单边测量范围 |
430毫米×300毫米 |
160毫米×110毫米 |
|
扫描精度 |
0.015毫米 |
0.00 6毫米 |
|
点距离 |
0.1毫米 |
0.04毫米 |
|
工作距离 |
590毫米 |
210毫米 |
|
扫描深度 |
300毫米 |
60毫米 |
|
传感器像素总数 |
1230万×4 |
|
|
光源类型 |
蓝色LED灯 |
|
|
探针重量 |
3.5公斤 |
|
|
方面 |
366毫米×162毫米×132毫米（含把手高度） |
|
12.3 million pixels, high resolution, and enhanced surface detail.
Suitable for measuring small and medium-sized workpieces.
Highly accurate measurement of grooves and other locations.
Fast scanning speed, with a single scan time of less than 1 second.
Fully automated, batch inspection possible with the RobotScan intelligent 3D inspection system.
Non-contact scanning reduces damage to delicate objects.
Clearly reproduces details even on small objects.
应用领域
Automotive Industry
3D dimensional inspection of auto parts, 3D inspection of automotive molds
Civil Aviation
Full-size inspection of engine blades, component quality control, assembly and integration
Electronics and Electrical
Inspection of precision injection molds, Dimensional inspection of mobile phone casings, Dimensional inspection of precision plastic accessories, 3D design of coffee machine cutterheads
Precision Medicine
Digital Orthopedics, Rehabilitation Medicine, Aesthetic Medicine & Restoration, Integration of Medicine and Engineering, Medical Education
没有可用视频
亮点
1

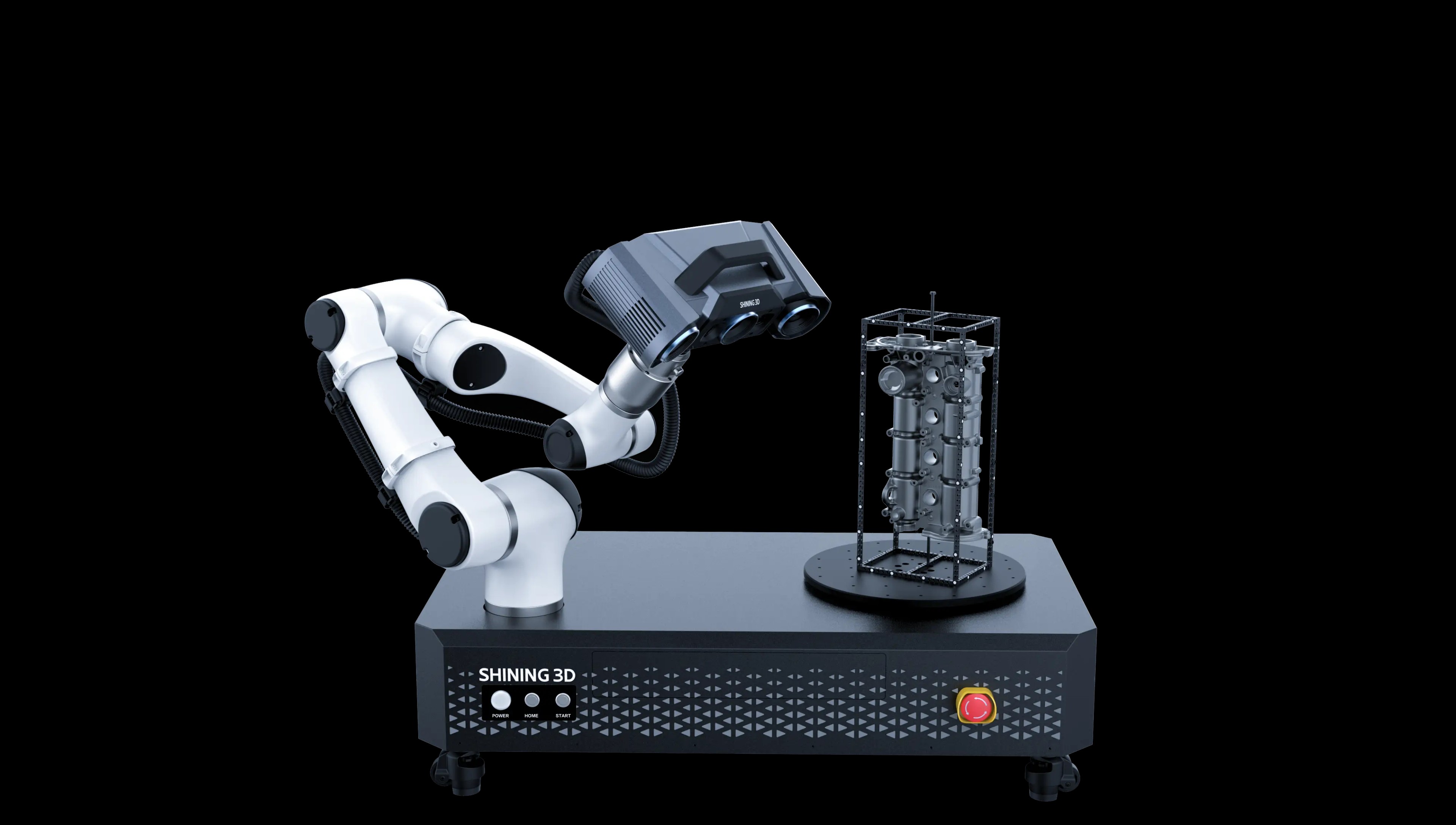

High precision and accurate measurement.
Utilizing powerful hardware modules and 3D reconstruction algorithms, it achieves accuracy up to 5 microns with stable repeatability.
2

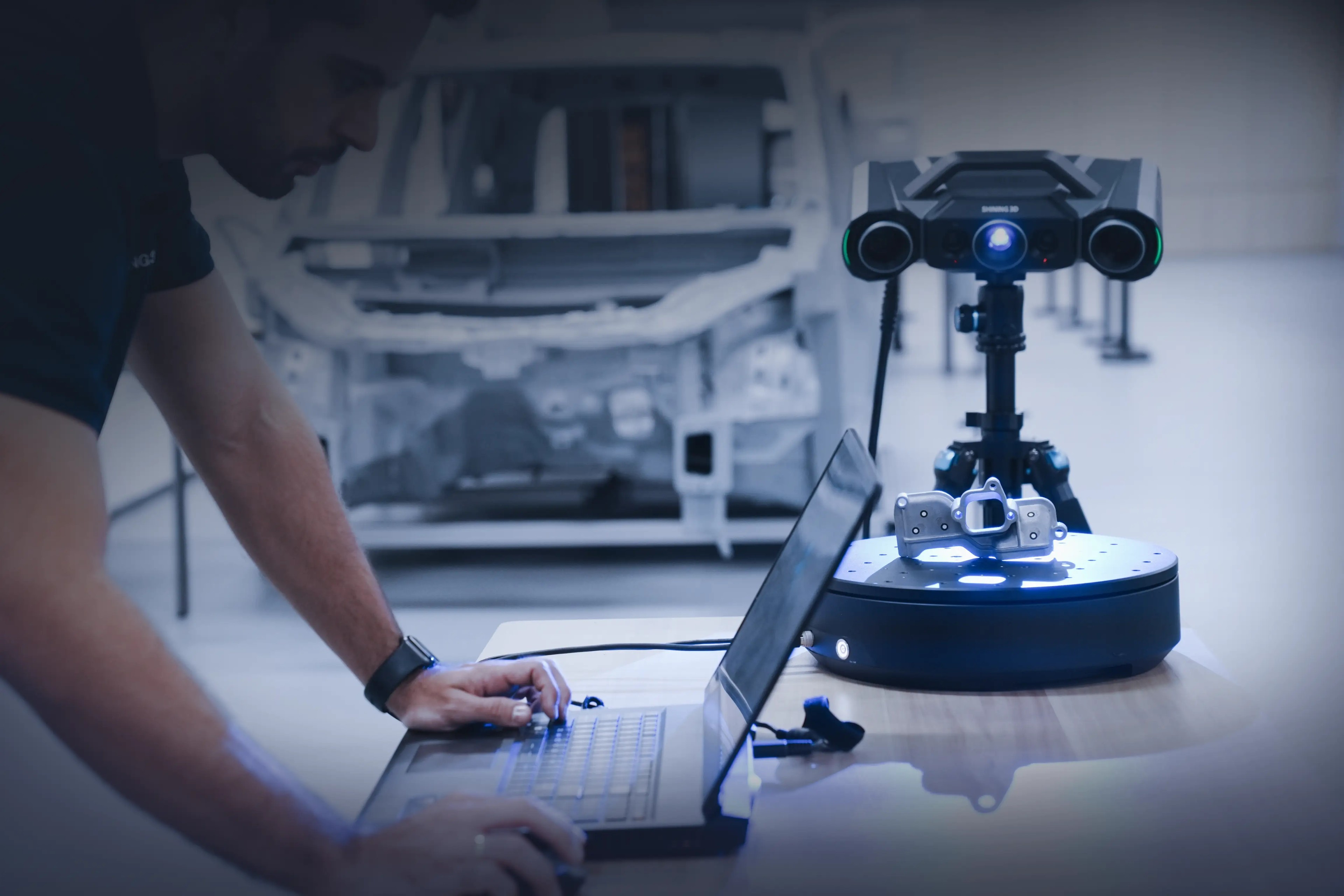

High resolution and detailed visualization.
Equipped with a high-quality 12.3-megapixel industrial camera, it accurately reproduces surface geometry and features.
3

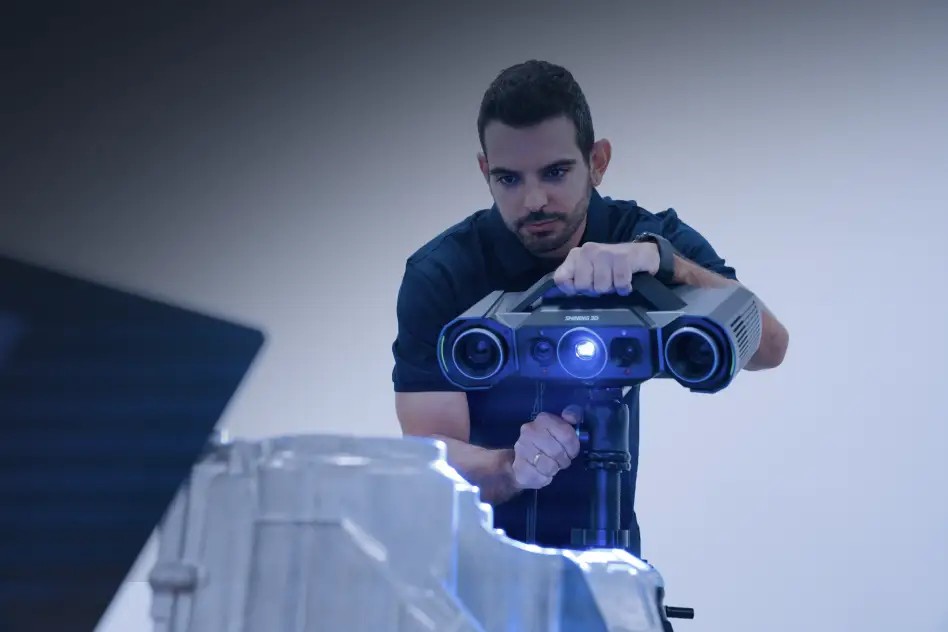

Fast scanning, double the efficiency.
Its built-in dual-chip computing platform enables single-frame scanning times of less than 1 second. Combined with a robotic arm/turntable, it enables high-speed 3D inspection.
4

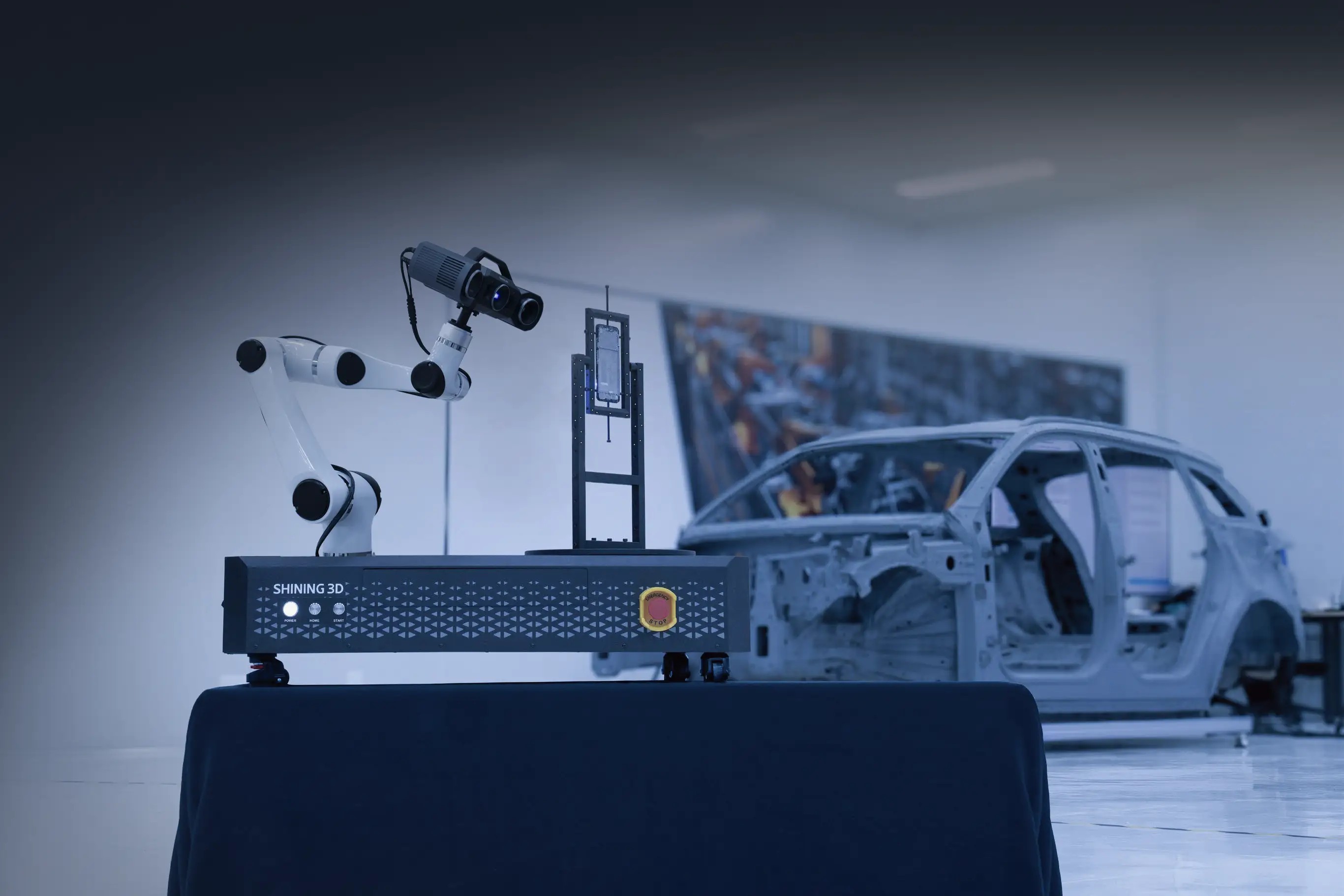

Dual Scanning Ranges with Free Selection.
It integrates two sets of high-resolution scanning modules, eliminating the need for manual lens replacement and focusing, enabling one-click switching between two different scanning ranges.
5

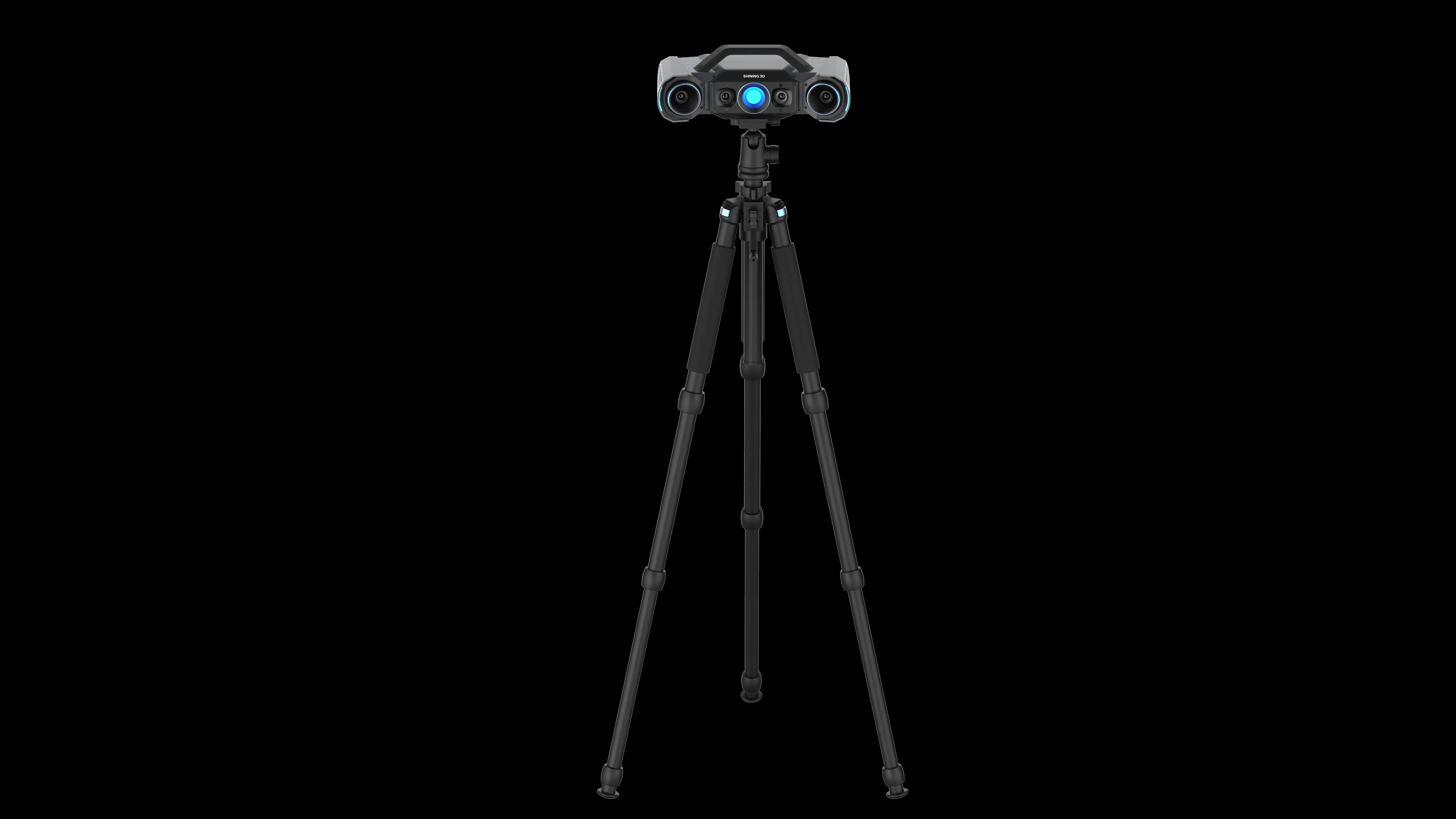

Monocular and binocular modes for more complete data.
Supports simultaneous monocular and binocular capture of positional data, such as grooves, and automatic data fusion for enhanced scanning integrity.
