Name: DVHJ-AT系列
Price: 1 USD
Availability: InStock

‌
‌
‌
‌
‌

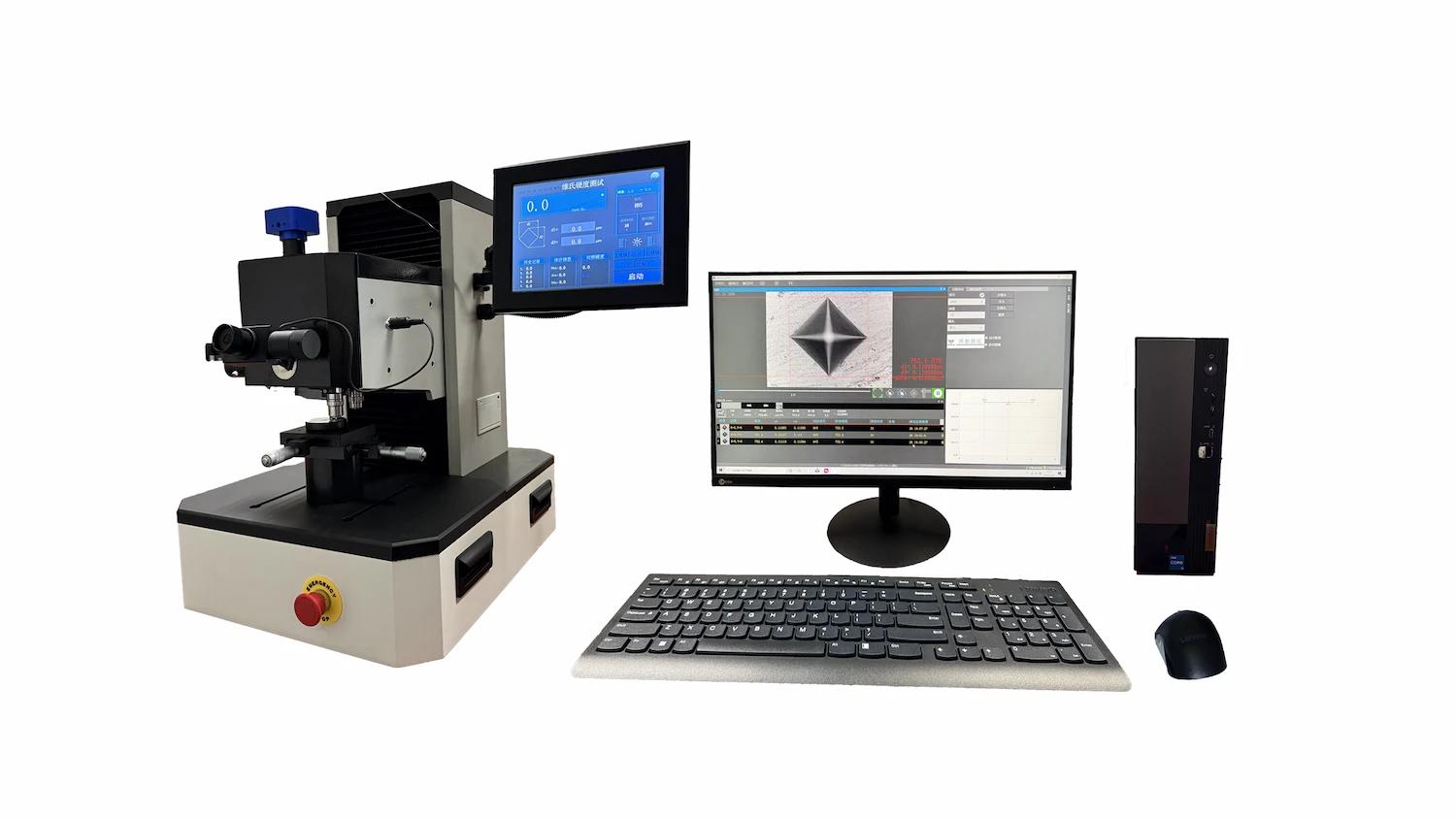

Brand-new mechanical structure design with a robust frame structure.

Head-moving structure guided by linear slides.

Driven by high-precision motors.

Fixed stage, which reduces coaxiality errors caused by the up-and-down movement of the lead screw.

Large working platform space, enabling the measurement of large-sized parts and suitable for replacing with large-scale working platforms.

亮点

High precision step controlled electrical loading technology.

The main test force has fast loading speed and high efficiency.

High-precision sensors combined with the control system, with a curve chart of the unique power value.

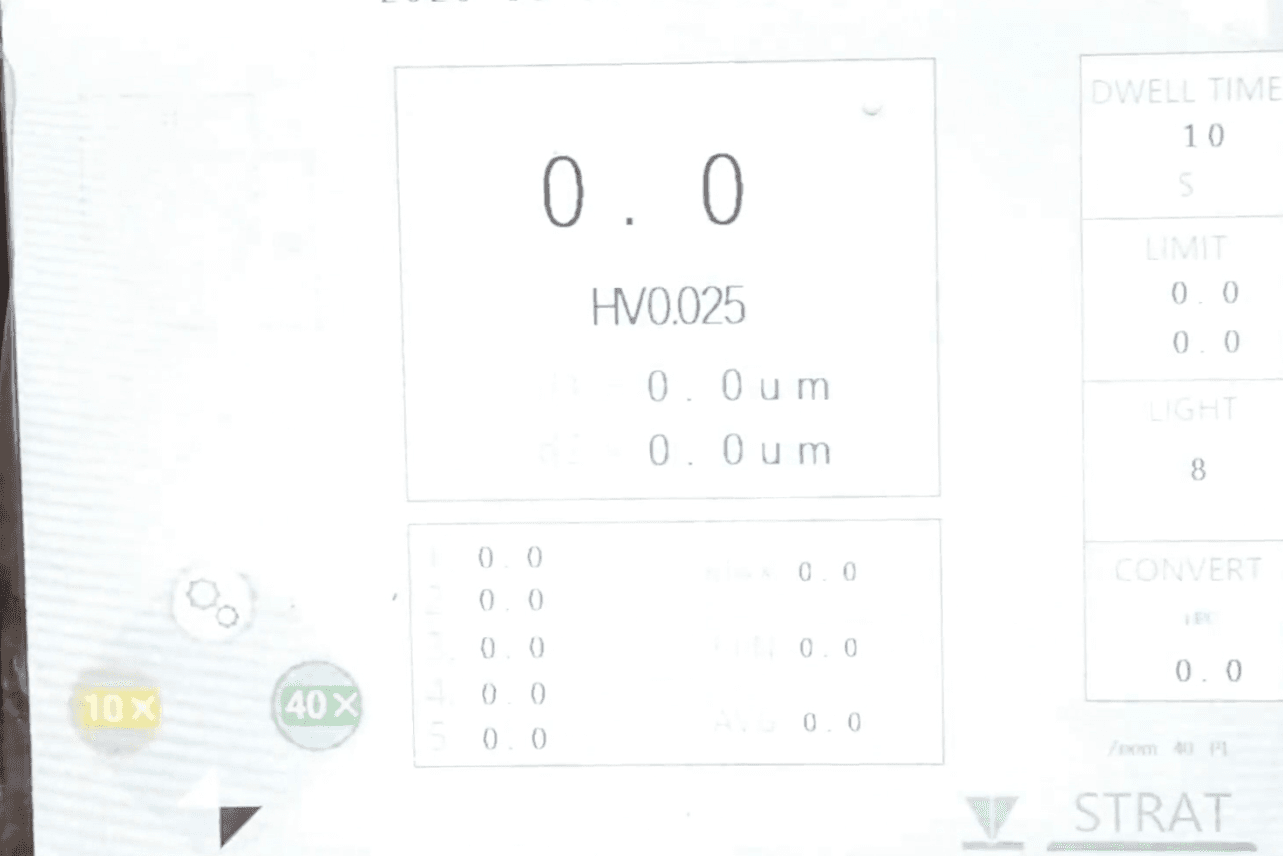

Remote control can be achieved with simple operation.

Extremely fast loading speed: Test force loading time 2-10 seconds.

Intelligent control throughout the entire process. Segmented force application, smooth speed change, high-precision high-speed step control, etc.

对此产品有疑问吗？

与我们联系

DVHJ-5AT
0.2, 0.3, 0.5, 1, 2, 3, 5
自动加载和卸载
自动（试验力和刻度同步切换）
中英文
5-60s
自动切换
HV/HK
10×, 20×
10×
400μm
0.1μm
220毫米
170毫米
高压, 香港, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW
力曲线、选项、数据库、控制、加载启动、灯光调节、目标切换
D1、D2 值、HV, HK 指示, 硬度值、换算值、保持时间、测试次数
尺寸：100×100mm；最大限度。机芯：25×25mm
LED
RS 232
GB/T 4340、ISO6507、ASTM E-384
AC220V±5%
600×470×620毫米
大约70公斤
