DRHH-XZ系列
‌
‌
‌
‌
‌

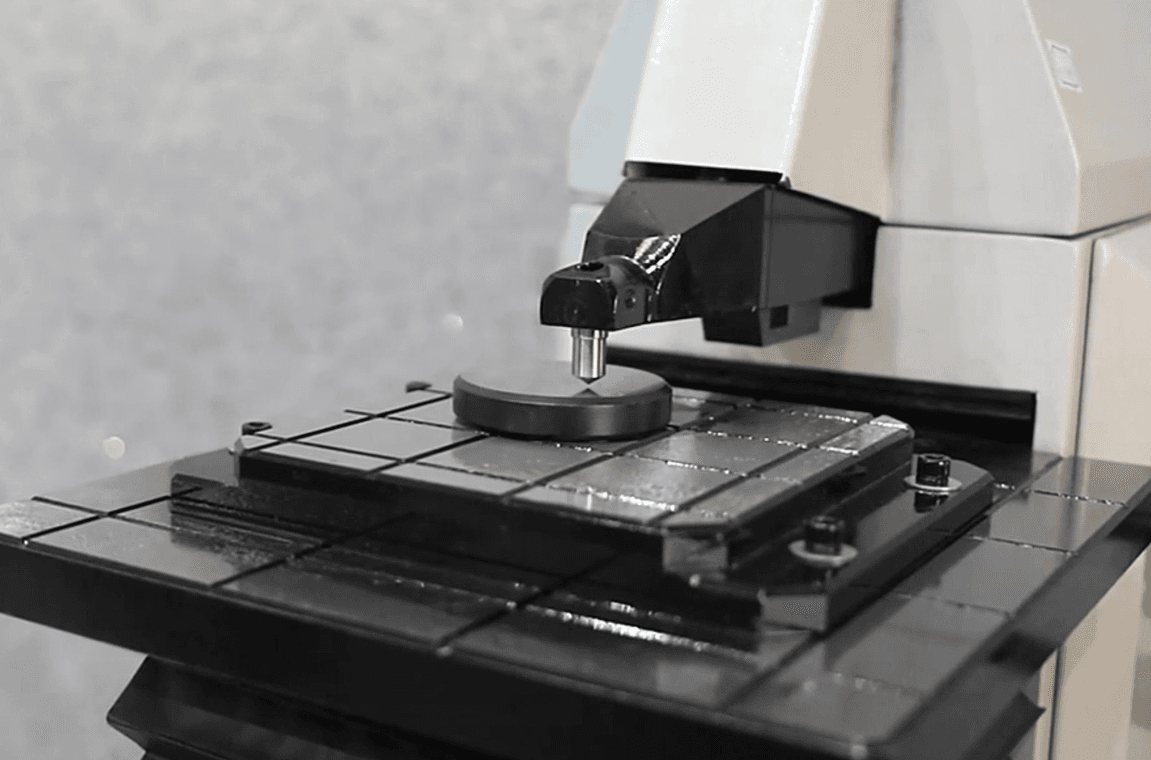

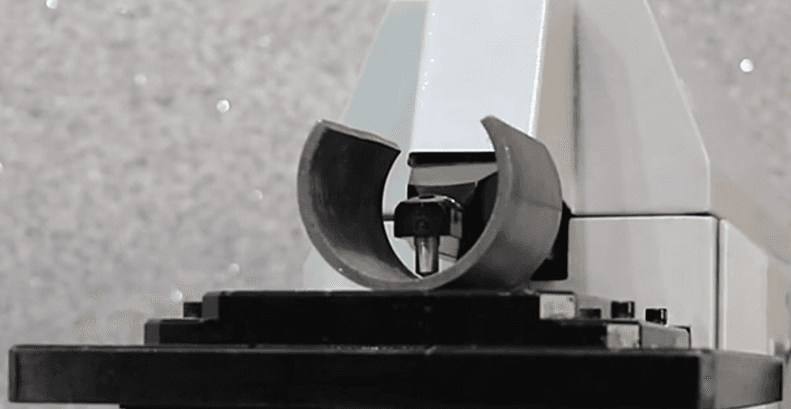

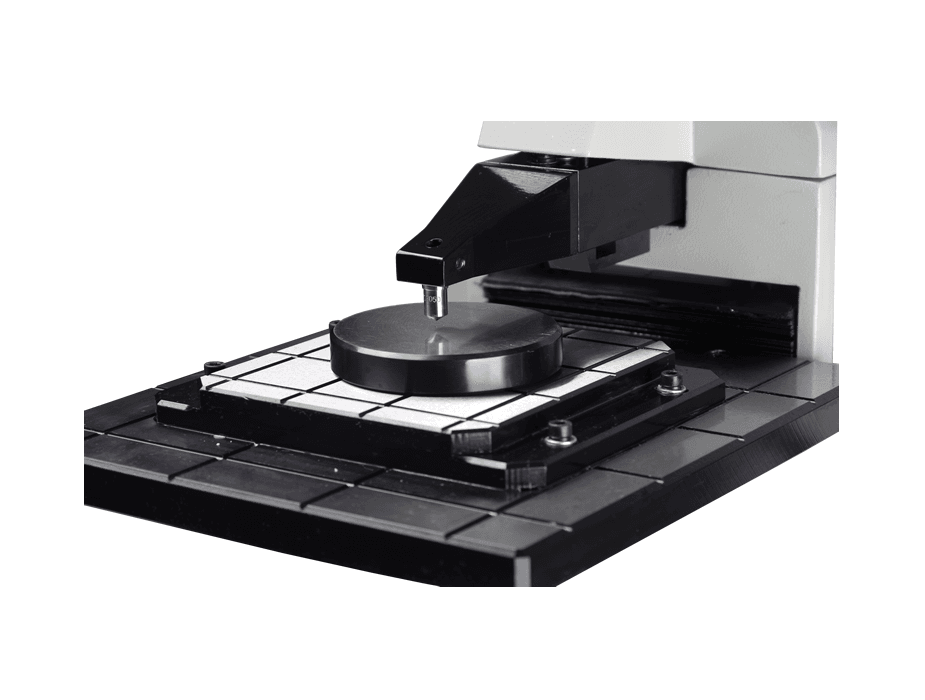

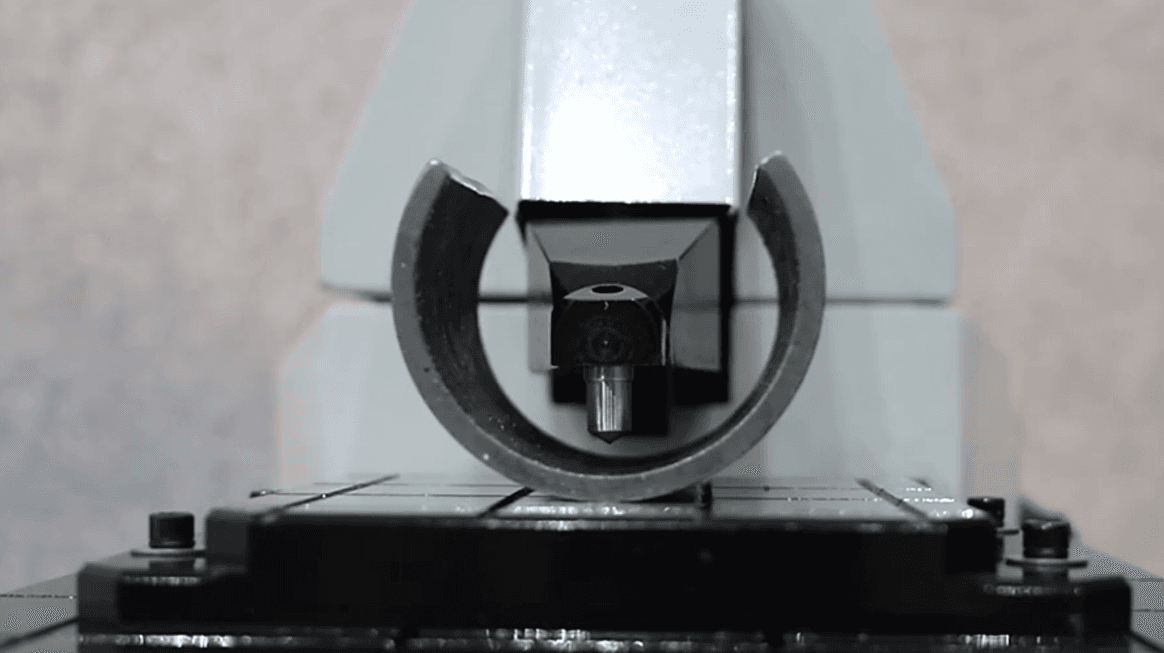

The specially designed indenter extends horizontally and can measure parts such as rings and tubes that cannot be measured by ordinary hardness testers. The standard configuration can test a minimum inner diameter of 40mm, while the customized indenter can test a minimum inner diameter of 25mm.

High testing accuracy and wide measurement range.

Surface correction, automatic correction of cylindrical and spherical measurement results.

High repeatability and accuracy.

Convenient operation, with switchable Chinese and English interfaces (customizable for other language versions).

Setting password protection settings parameters.

Save more samples and test information.

Modular design for easy maintenance.

亮点

1

High speed precision step control system effectively avoids overloading of force measurement and greatly improves loading speed.

2

One click operation, Z-axis automatically rises, and loading, holding, and unloading force values are completed in one, truly achieving fully automatic operation.

3

Upper and lower limit settings, out of tolerance alarm.

4

Ready to use upon startup, no need to install weights, easy to install and debug.

5

The initial test force of the automatic lifting platform and automatic load can ensure stable generation of force measurement.

6

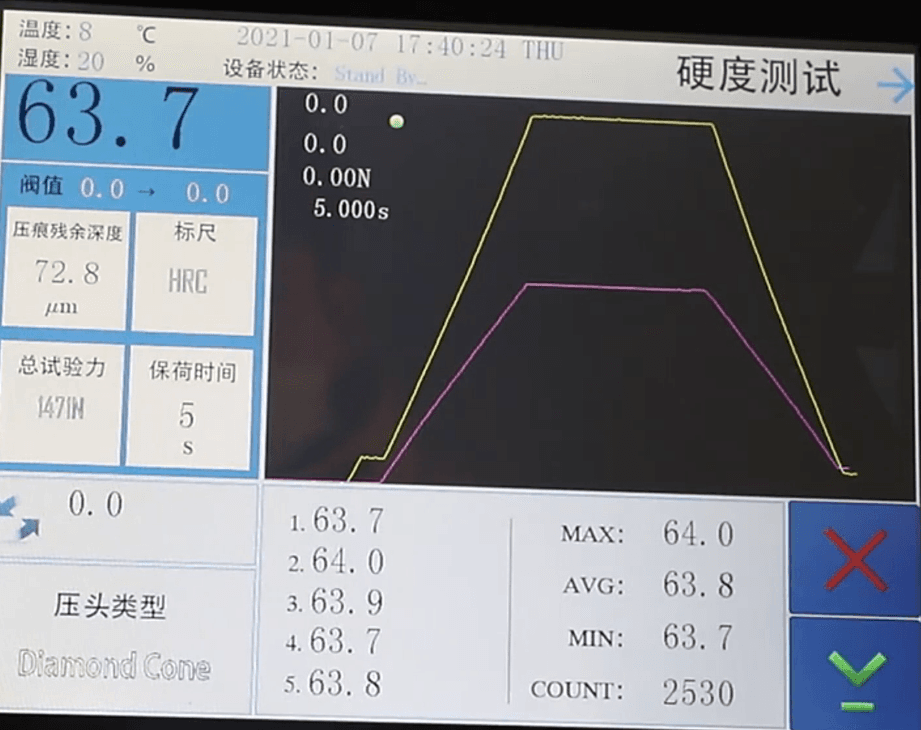

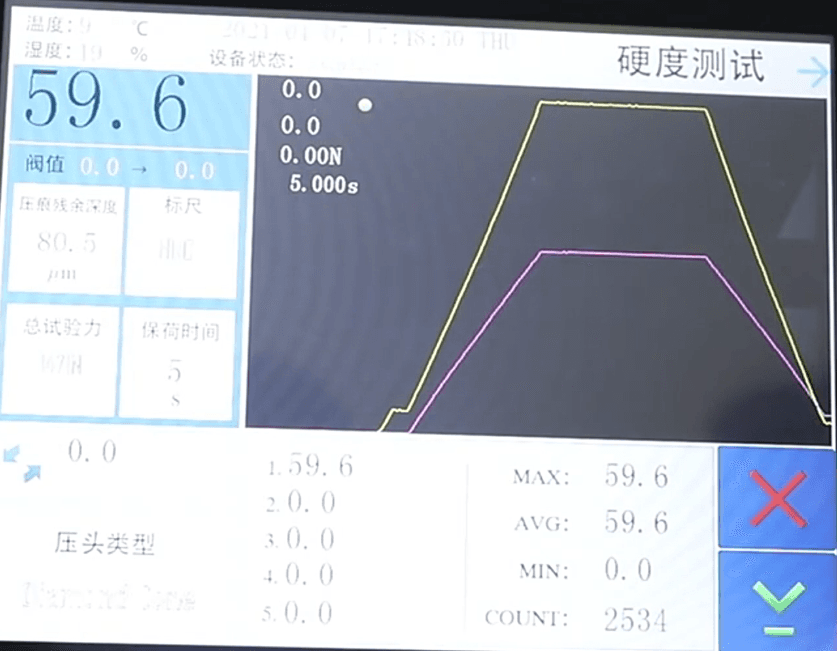

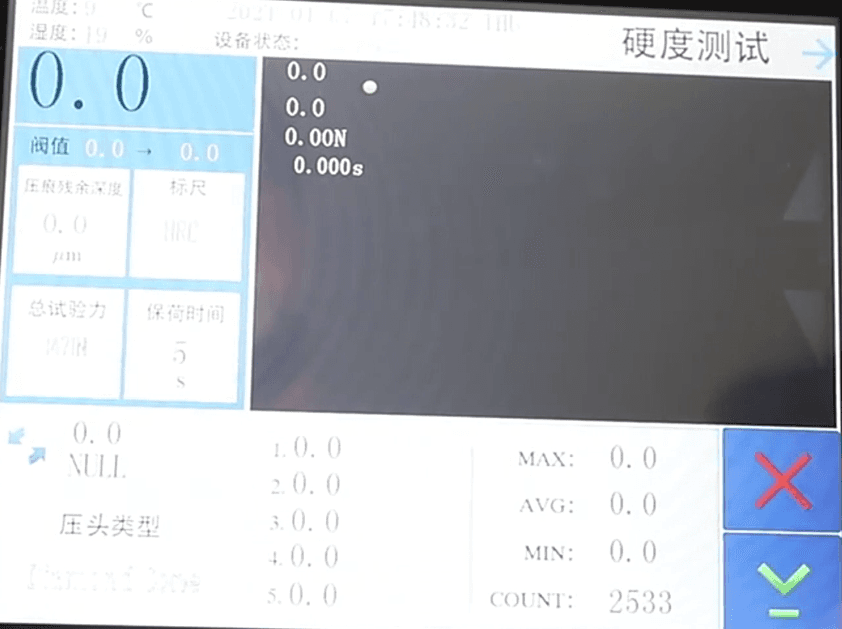

Display the testing process curve, which can visually display the material characteristics, making it convenient for observation and learning.
