New mechanical structure design with sturdy frame structure.
Contains the full range Vickers hardness force values.
Fixed loading platform to reduce coaxiality errors caused by screw rod movement up and down.
The workspace of the work platform is large, which can achieve large-scale measurement and is suitable for replacing large work platforms.
模型
DMHA-620-XYZ
测试力
0.01, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1.0, 2.0Kg
执行标准
GB/T4340, ISO 6507, ASTM E-384
分辨率
0.0625μm（可选60×物镜：0.0417μm）
硬度测量范围
5-6000HV
加载方式
自动
放大倍数
50×; 100×； 200×； 400×
压头与物镜切换
自动
转化比例
HR/HB/HV
停留时间
1-60s
X-Y 表格
尺寸：100×100mm 最大移动：25×25mm
最大样本高度
215mm
iIndenter 到主体的距离
155mm
电源
AC220V+5%, 50-60Hz
尺寸
600×450×630mm
净重
约70公斤
Precision Manufacturing
Micro mechanical parts, precision molds, electronic components, etc.
Electronics & Semiconductor Industry
Surface hardness and thin-film hardness of semiconductor chips and wafers, PCB circuit boards, plating hardness of electronic component pins, hardness of precision electronic parts such as micro motors and sensors, etc.
Materials Science & Metallurgy Industry
Microhardness of metal materials, hardness uniformity of metals after heat treatment, etc.
Aerospace Industry
Hardness of aerospace components (aluminum alloy structural parts, titanium alloy fasteners, aero-engine blades).
没有可用视频

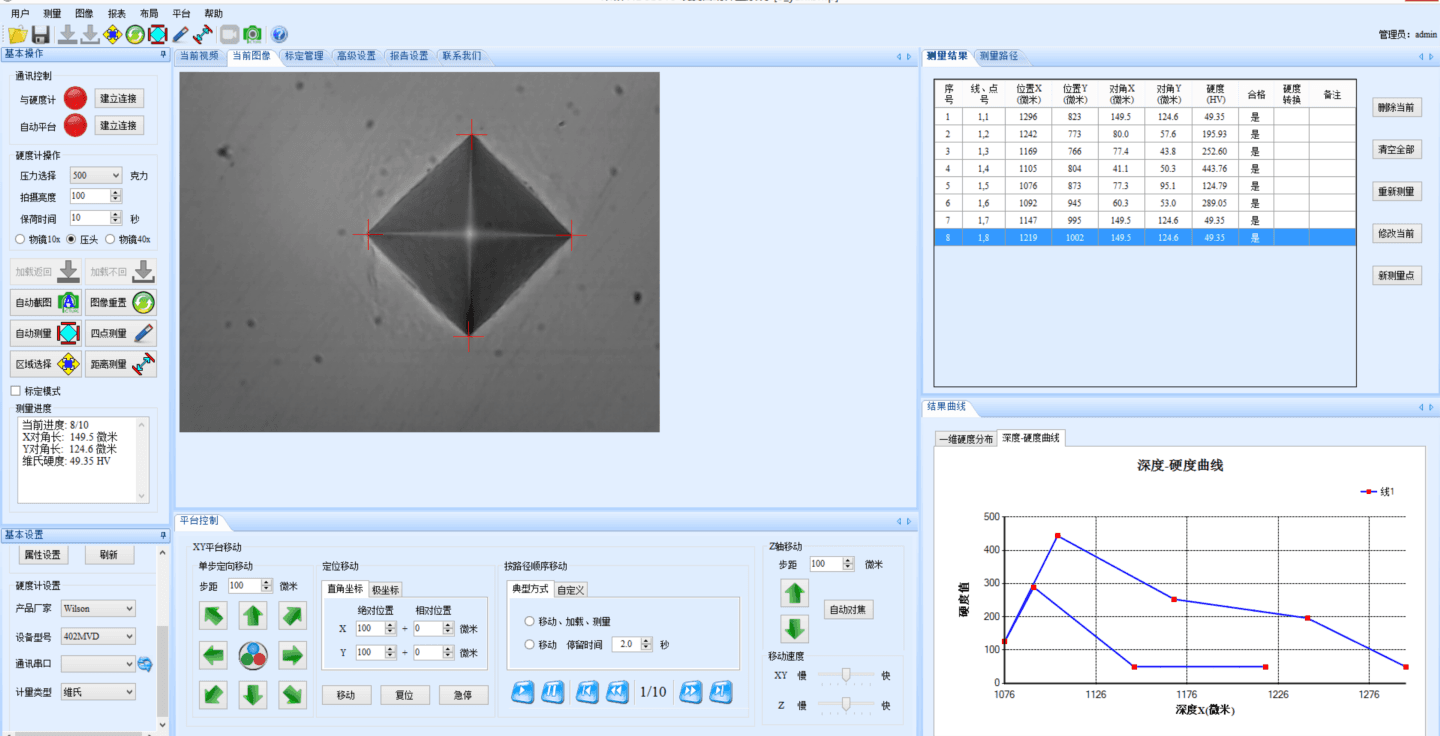

Adopting the control system, combined with high-precision digital turret positioning, further improves measurement accuracy.
Mobile head structure with linear slide guide.
Adopting high-precision motor drive.
