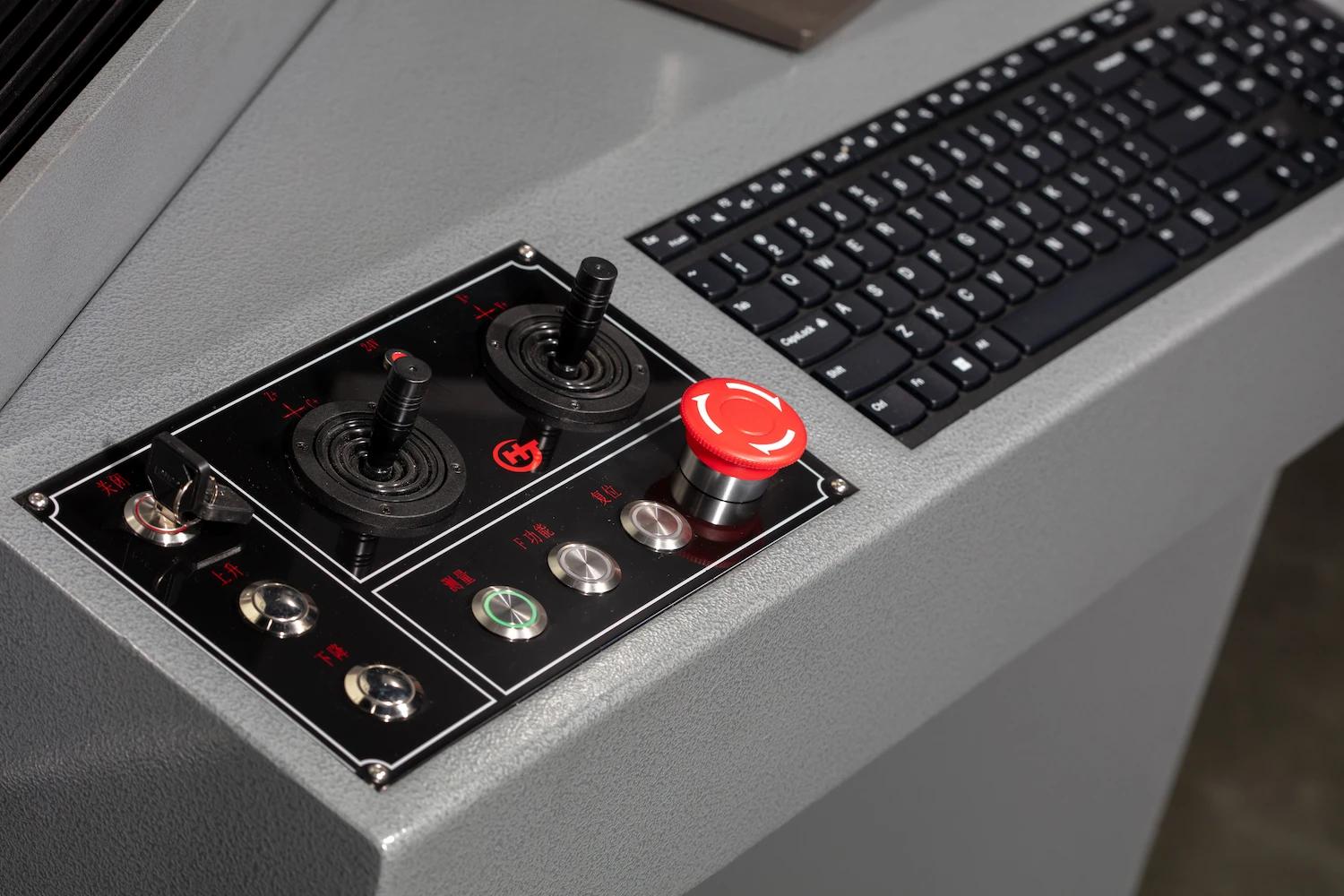

High-precision motion control integrated machine.
Natural marble base for excellent stability.

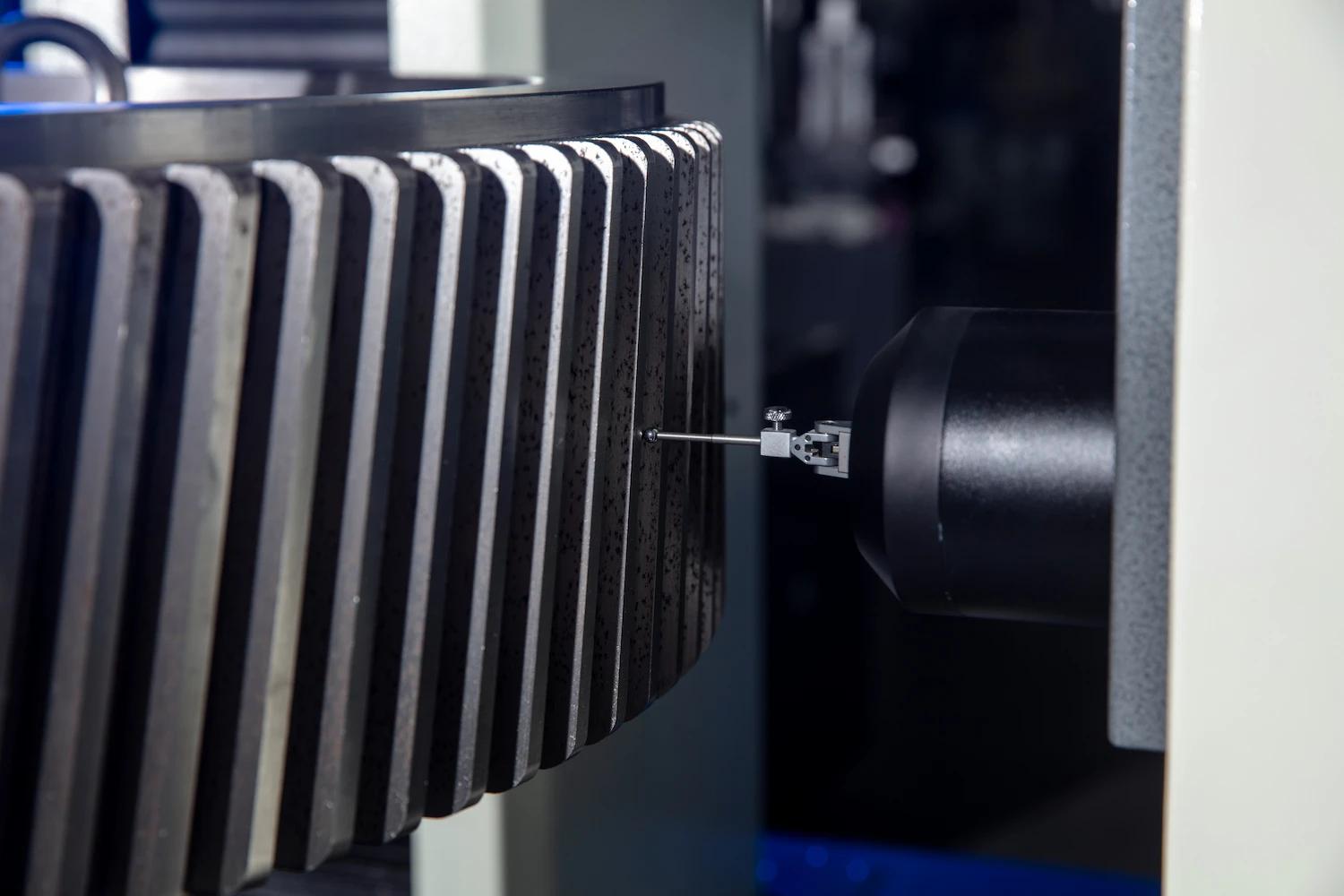

Capable of measuring straight teeth and helical cylindrical gears, hobbing cutter, shaving cutter, shapping cutter, worm wheel, worm, straight bevel gear, spiral bevel gearetc.
Employs a 4-axis or 5-axis measurement system with fully closed-loop motion control.
DGMT800 | DGMT1000 | DGMT1200 | DGMT1500 | DGMT2000 | |
模数（毫米） | 1-25 | 1-25 | 1-30 | 1-30 | 1-40 |
G耳最大外径（毫米） | 800 | 1000 | 1200 | 1500 | 2000 |
C点之间的距离（毫米） | 20-1000 | 20-1000 | 20-1000 | 20-1500 | 20-1500 |
垂直触控笔设置范围（毫米） | 600 | 600 | 600 | 800 | 1000 |
螺旋角（°） | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 |
G耳最大重量（千克） | 800 | 1200 | 1200 | 3000 | 5000 |
机器的D尺寸（厘米） | 210× 190×240 | 220×200×255 | 240×220×260 | 300×260×300 | 350×300×320 |
配置 | 数量 |
基本机器 | 1个 |
电气控制系统 | 1套 |
电脑 | 1个 |
打印机 | 1个 |
球形探针：φ0.5 φ1 φ2 φ3 φ5 | 6-8 件 |
驱动器设备 | 1套 |
杆（内齿轮和锥齿轮） | 1套 |
芯轴（300毫米） | 1个 |
配件 | 数量 |
渐开线和螺旋线大师 | 1个 |
三爪卡盘 | 1个 |
Inspection of gear transmission systems for general machinery and special-purpose equipment.
Timing gears of automotive engines, gearboxes, gear sets, differential gears, and steering system gears.
Aero-engine gearboxes, transmission gears of aircraft landing gears, and gear assemblies for spacecraft attitude adjustment.
Hydraulic pump gears, traveling mechanism gears, slewing bearing gears and other gear components for engineering machinery such as excavators, loaders and cranes.
Micro-precision gears and harmonic gears applied in instruments, meters, robot joints and other fields.
暂无视频
Fully closed-loop high dynamic response motion control system.
Finite element analysis optimization design to ensure accuracy and stability.
Utilizes electronic generating measurement principle, capable of measuring various gear tools.
High measurement accuracy and stable readings.

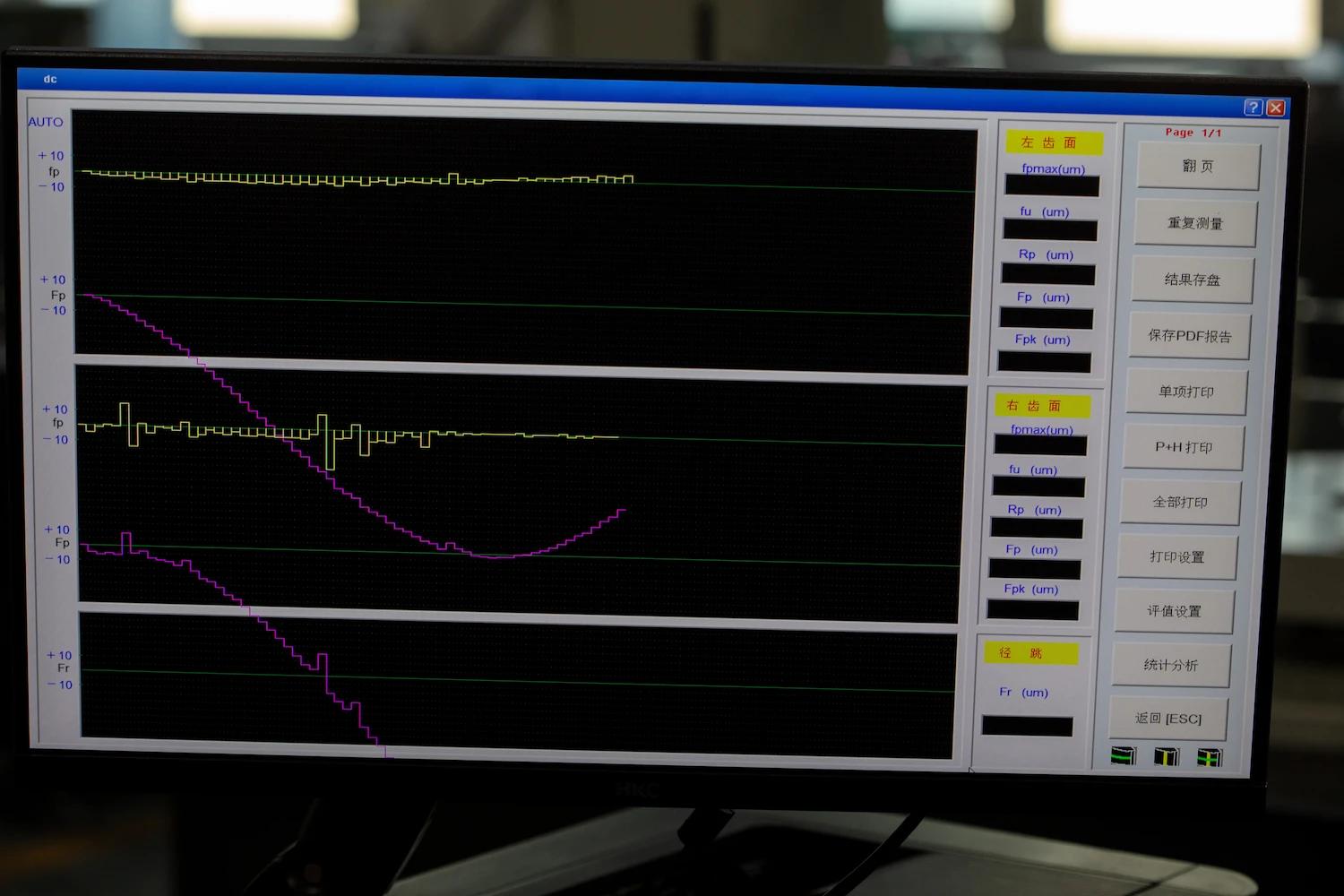

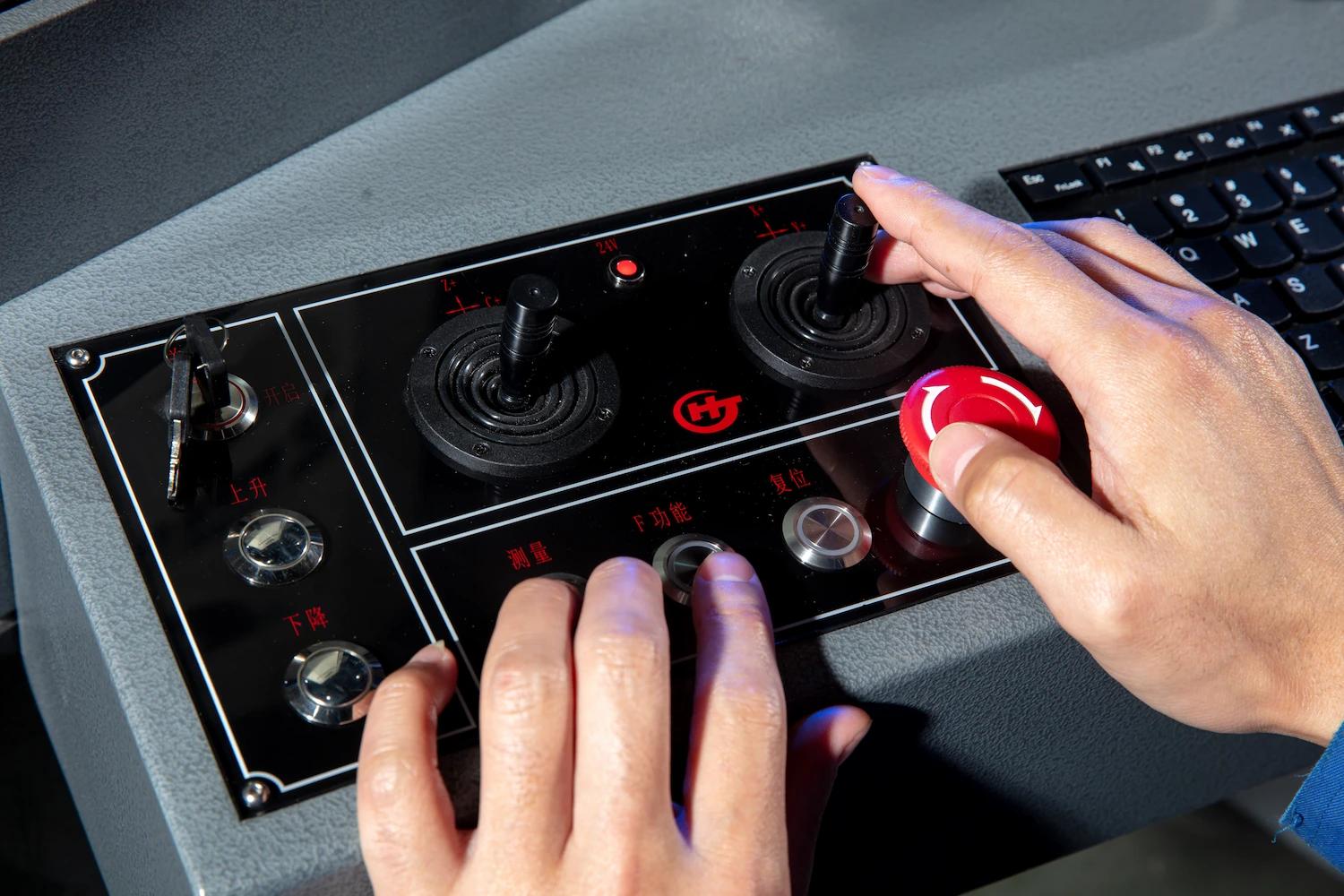

Advanced data acquisition and processing system, simple operation.
