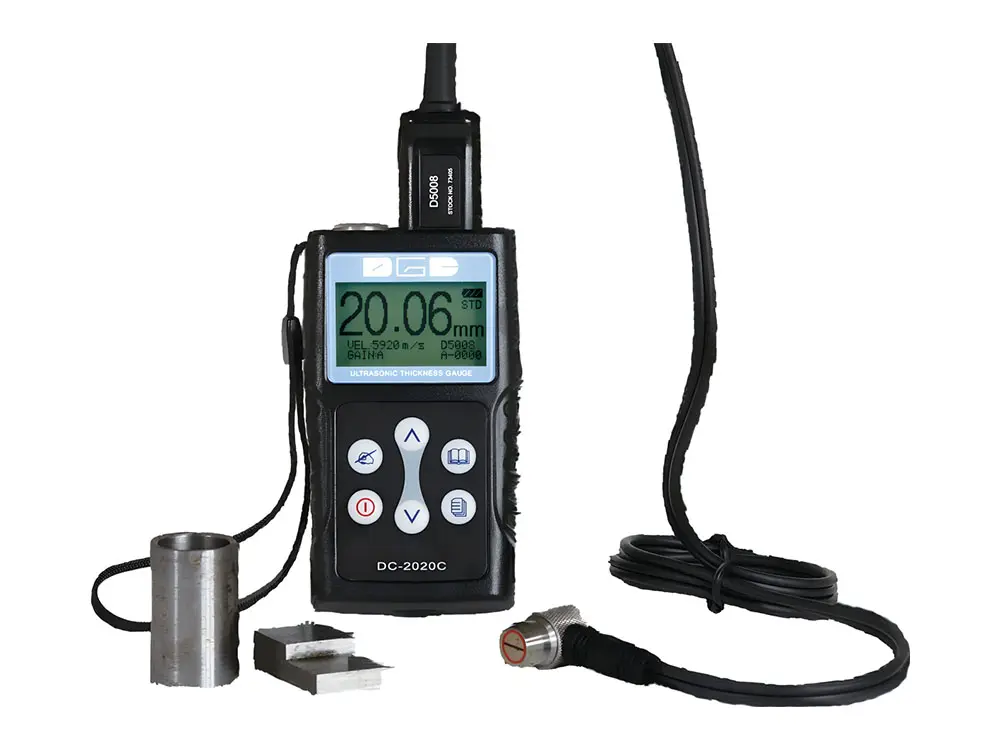

DC-2000C
|
DC-2000C |
DC-2010C |
DC-2020C |
DC-2030C |
|
|
Image |
|
|||
|
Display |
128x64 LCD screen |
|||
|
Measurement Range |
Transmit-echo: 0.65-400mm |
|||
|
Resolution |
0.01mm/0.001inch |
|||
|
Accuracy |
±0.04mm (Thickness value <9.99mm) |
|||
|
±(0.1% Thickness value +0.04)mm Thickness value=10-99.9mm |
||||
|
±0.3% Thickness value Thickness value>100mm |
||||
|
Standard Probe |
D5008 |
D5008 |
D5008 |
D2012 |
|
Auto Zero Calibration |
✓ |
✓ |
✓ |
✓ |
|
Manual Calibration |
✓ |
✓ |
✓ |
✓ |
|
Sound Velocity Range |
1000-9999m/s |
|||
|
Measuring Frequency |
2 times/s or 10 times/s |
|||
|
Min. Value |
✓ |
✓ |
✓ |
✓ |
|
Difference Value |
X |
X |
✓ |
X |
|
Average Value |
X |
X |
✓ |
X |
|
Upper/Lower Limit |
X |
X |
✓ |
X |
|
Storage |
X |
3120 |
5200 |
3120 |
|
Data Reading |
X |
✓ |
✓ |
✓ |
|
Data Output |
USB, No software required |
|||
|
Low-Voltage Indicator |
✓ |
|||
|
Automatic Shutdown |
✓ |
|||
|
Battery |
2XAAA Battery |
|||
|
Operating Ttemp |
-20℃~+50℃ |
|||
|
Dimensions |
115mm×64mm×27mm (L×W×H) |
|||
|
Weight |
0.22 kg (including battery) |
|||
Highlights
1. Automatic probe zero-point calibration upon power-on
2. Automatic probe recognition by the main unit; multiple probes available, measurement range expanded to 0.65mm-400mm
3. Preset sound velocity values for 9 commonly used materials for easy selection
4. Large, high-definition backlit LCD
5. Manual/automatic gain adjustment
6. Capable of measuring small-diameter pipes with a diameter of 15mm and an inner diameter of 1mm and a wall thickness.
