Overview
1. Applied to batch measurement of component dimensions
2. Integrates artificial intelligence technologies such as machine vision-based edge extraction, automatic matching, auto-focusing, auto-learning and image synthesis
3. Adopts a dual telecentric optical path and a multi-angle illumination system design
4. Equipped with a high-precision motion platform and large-stroke stitching technology
5. Processes images through a sub-pixel edge extraction algorithm
Highlights
1

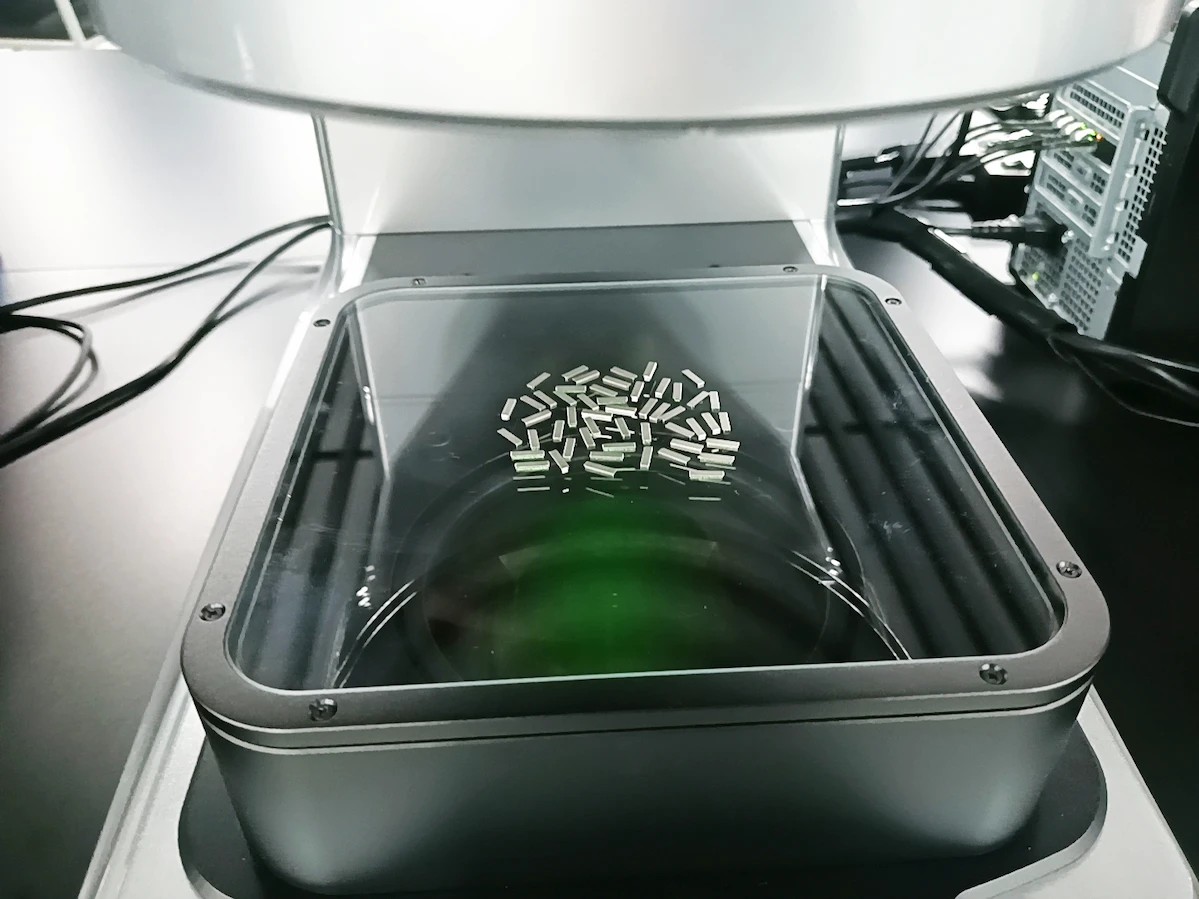

One-Click Flash Measurement for High-Efficiency Testing
Intuitive operation: complete product measurement with a single click.
No need to align the product for testing, delivering ultra-high measurement efficiency.
2

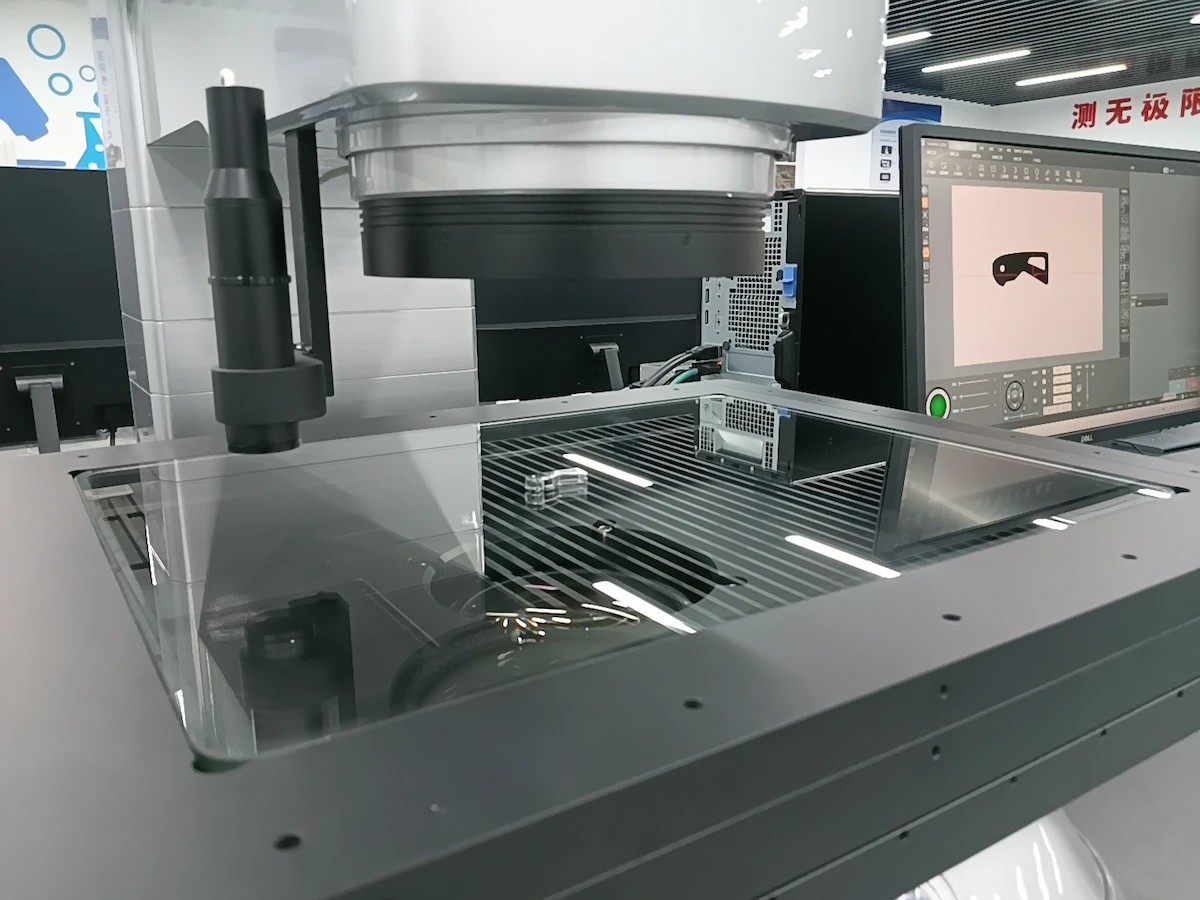

Stable and Reliable with Guaranteed Precision
Measurement accuracy is maintained at the micron level, and the device enables fully automated testing.
Autofocus function eliminates human interference, ensuring excellent consistency in repeated measurements.
Automatically identifies measurement positions, so results are unaffected by the operator’s skill level.
3

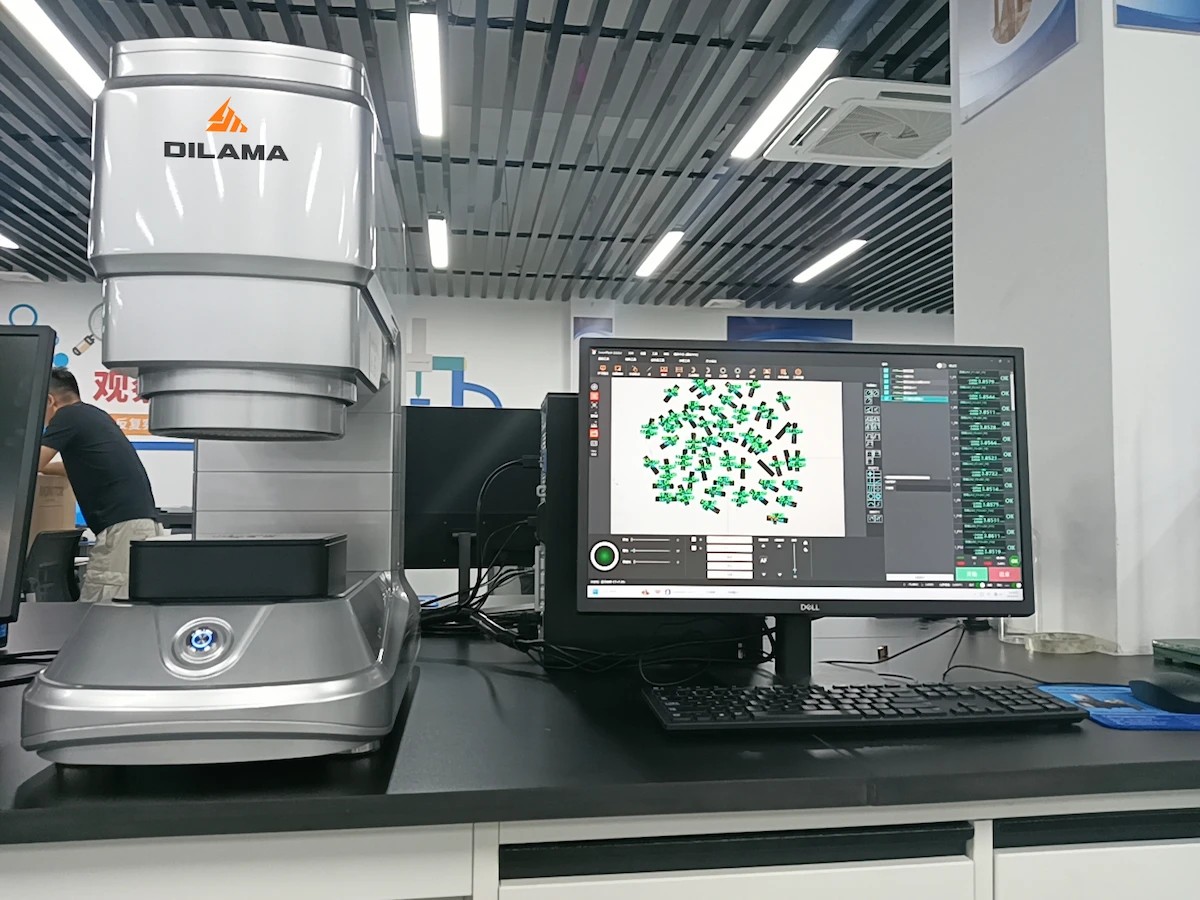

Product Differentiation
No programming required: Import CAD files to automatically generate measurement programs and output inspection reports.
Parallel measurement: All features are measured simultaneously, drastically reducing measurement time and significantly boosting inspection efficiency.
Contour extraction + dedicated tools: Scan files into point cloud data and extract the edge contours of products.
4

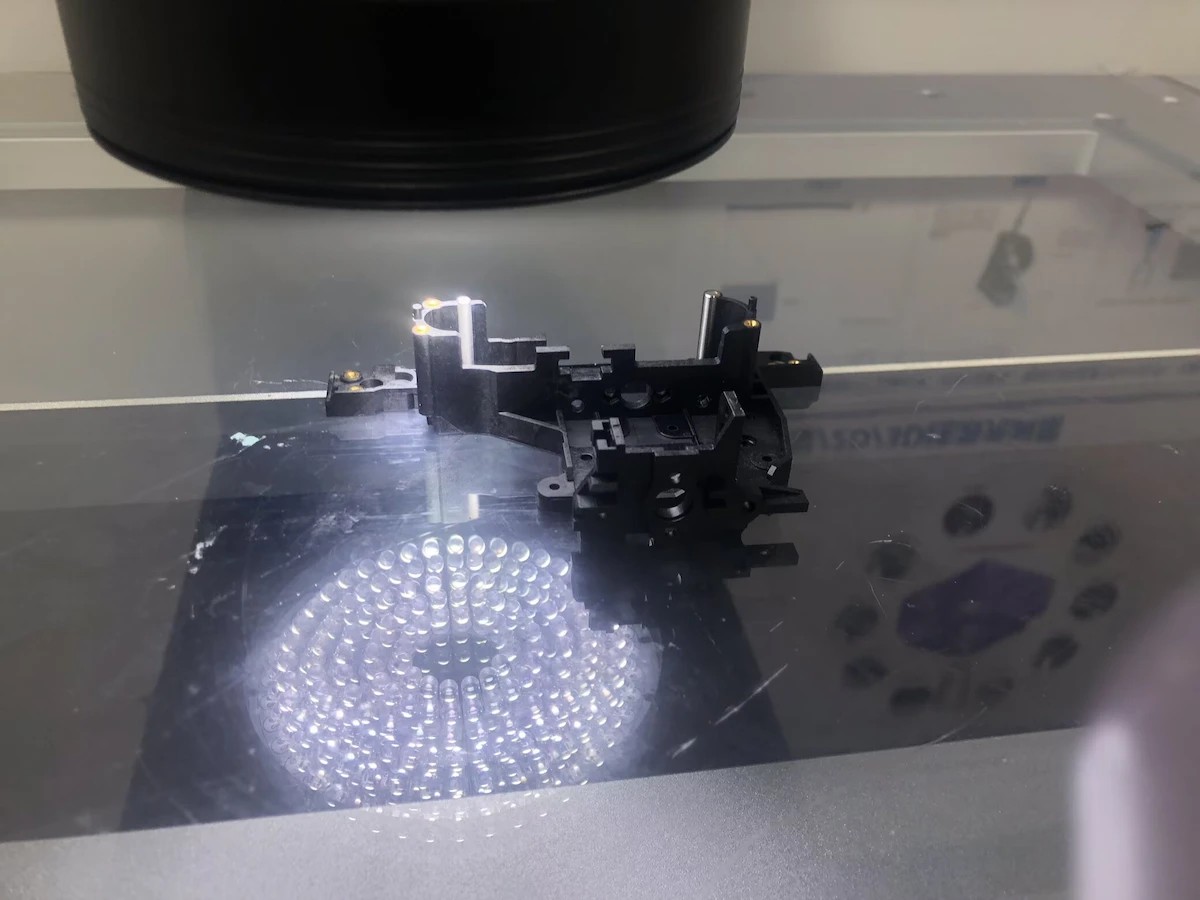

Powerful Software Functions with Simple Operation
Advanced Functions: Auto-focusing, offline programming, image stitching, profile extraction, and profile comparison.
Application
Its applications are wide-ranging, including machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, terminals, mobile phones, home appliances, printed circuit boards (PCBs), automobiles, medical devices, watches, instruments and meters, etc.
Our strengths lie in the dimensional measurement of mobile phone accessories, small stamping machines, gears, springs, and die-cut products.
After use
One‑button startup, free placement
Zero error
Simultaneous full inspection of multiple workpieces
Automatic data storage, report generation and traceability
