Specification
| Image | Name | Function |
 |

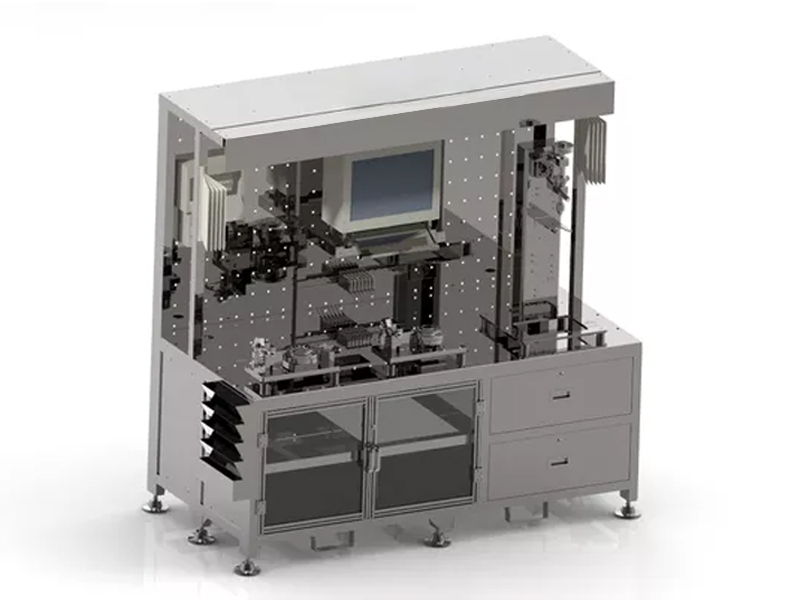

Gear Measuring Machine |
Gear detection, used for cylindrical gear, spiral gear, high-precision gear detection, used to detect single or combined gear, inner ring gear. Coaxiality measurement, concentricity detection, two tooth distance, inner hole diameter, tooth thickness, tooth pitch measurement, gear diameter detection, gear radius measurement, gear tooth width detection, tooth groove width measurement, tooth thickness measurement, etc., meet your requirements for gear measurement. |
 |

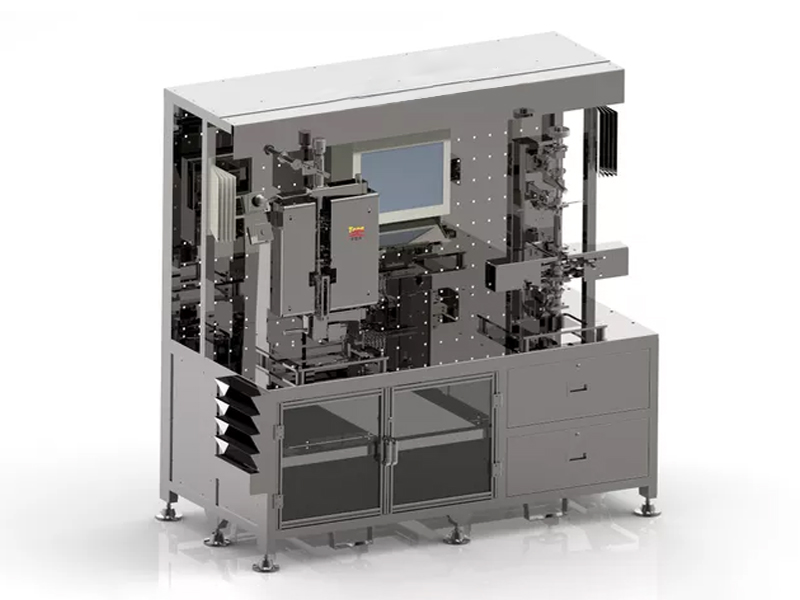

Gear Train Meshing Clearance Measuring Machine |
The meshing clearance of the gear includes radial clearance and tooth side clearance. The measured cylindrical gear and the measuring gear or measuring worm of the standard part are meshed on both sides without clearance, and the center distance between the measured cylindrical gear and the standard part is adjusted in the way of radial movement or swing to evaluate through the value of the measuring sensor. |
 |

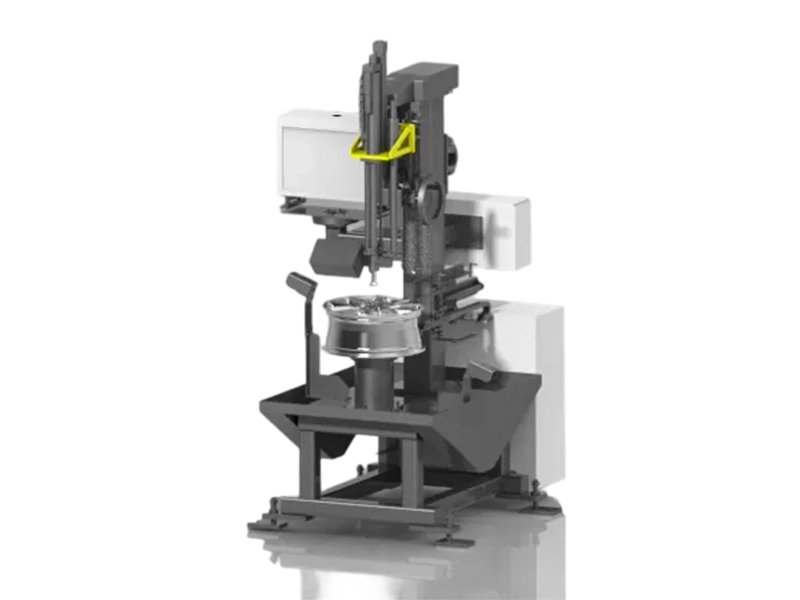

Automobile Wheel Hub Measuring Machine |
The measuring machine is used for automobile wheel hub detection. It adopts manual/robot loading and unloading, automatically completes the measurement cycle, and automatically collects the measurement data. The equipment has the advantages of fast measurement pace, accuracy and reliability, and simple operation. |
 |

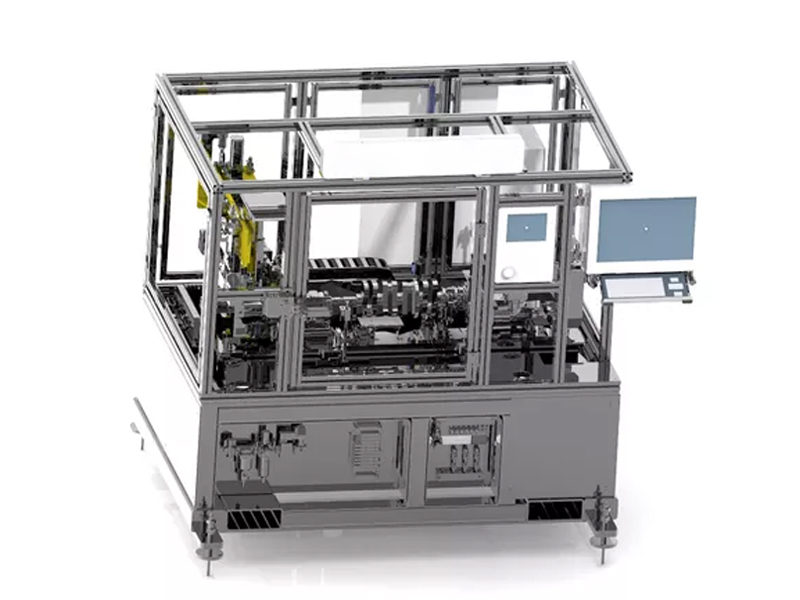

Crankshaft Measuring Machine |
The measuring machine is used for measuring the crankshaft. It mainly measures the crankshaft diameter, outer circle runout, roundness and other workpiece dimensions through the center positioning and dynamic measurement of contact sensors. It has the advantages of high measurement accuracy and good stability. |
Application
Automotive Manufacturing and Components Industry: Used for dimensional inspection of core components such as engine blocks, crankshafts, and camshafts, as well as online precision control of body stamping parts, wheel hubs, and transmission assemblies.
Electronics, Electrical Appliances and Semiconductor Industry: Enables online detection of PCB circuit dimensions, chip pin spacing, connector contact precision, and mobile phone components (including camera modules and battery assemblies).
Mechanical Manufacturing and Precision Machining Industry: Provides real-time dimensional measurement and geometric tolerance inspection (such as straightness and roundness) for products like gears, bearings, molds, and precision hardware parts during the production process.
New Energy Industry: In lithium battery production, it is used for online detection of electrode sheet dimensions, battery casing precision, and module assembly gaps. In the photovoltaic field, it conducts dimensional and appearance defect inspection of silicon wafers and photovoltaic modules.
3C Consumer Electronics Industry: Covers component measurement for mobile phones, computers, smart wearable devices, and other products, including screen frame dimensions, housing assembly gaps, and key precision.
After use
Stable accuracy
100% full inspection on the production line
Automatic data storage & traceability
